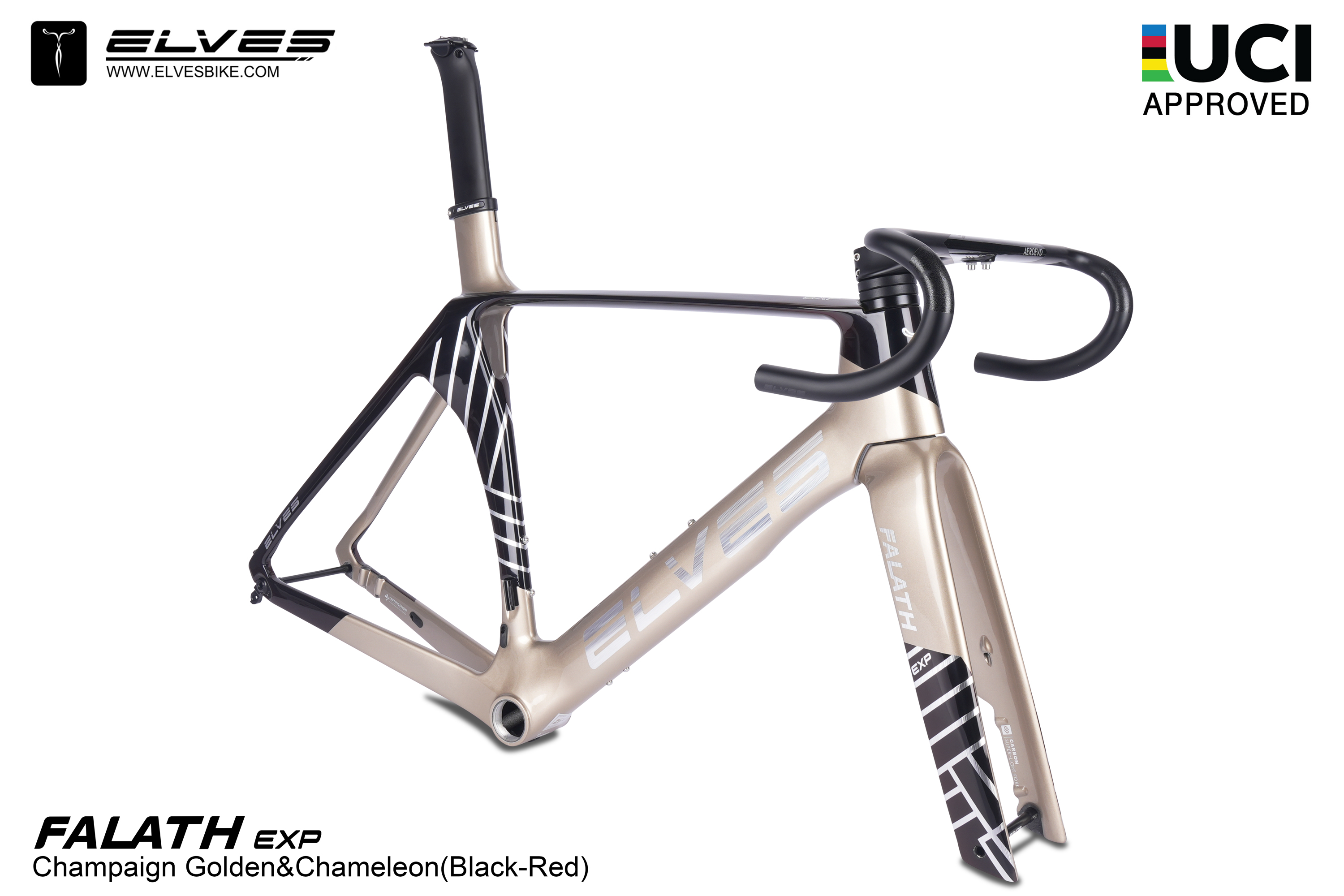

ELVES Falath EXP | Aero Carbon Road Disc Framesets | UCI Approved

Specification Overview:

* Frame material: Toray T800 & T1000 Carbon Fibre - EPS Mounding Technology
* UCI approved (ELVES-FEXP)
* Weights: Please see below
* Full internal cable routing* Max Tyre Clearance: 700cx32mm
* Rotor Size: 140mm or 160mm Not supplied
* Bottom Bracket: Supplied - Threaded T47 Senicx Ceramic in a choice of Shimano 24mm, SRAM DUB 28.99 or 30mm - not fitted.
* Gear Mech Hanger: 1 x Supplied - Standard (not UDH). Spare hangers can be bought from our 'spares' page
* Thru-axles: Supplied - 100mm (front) & 142mm (rear)
* Seat post: Supplied - 10mm offset, 245mm in length, 190g, two way adjustable clamp (7x7mm & 7x10mm clamps supplied)
* Headset: Supplied
* Di2 battery mount: Supplied
* Brakes: Flat mount, rear 20mm depth (33mm bolts required - Shimano)
* Compatibility: Compatible with mechanical and electronic 10/11/12 speed groupsets inc Di2 & AXS (Di2 battery is housed in the down tube)

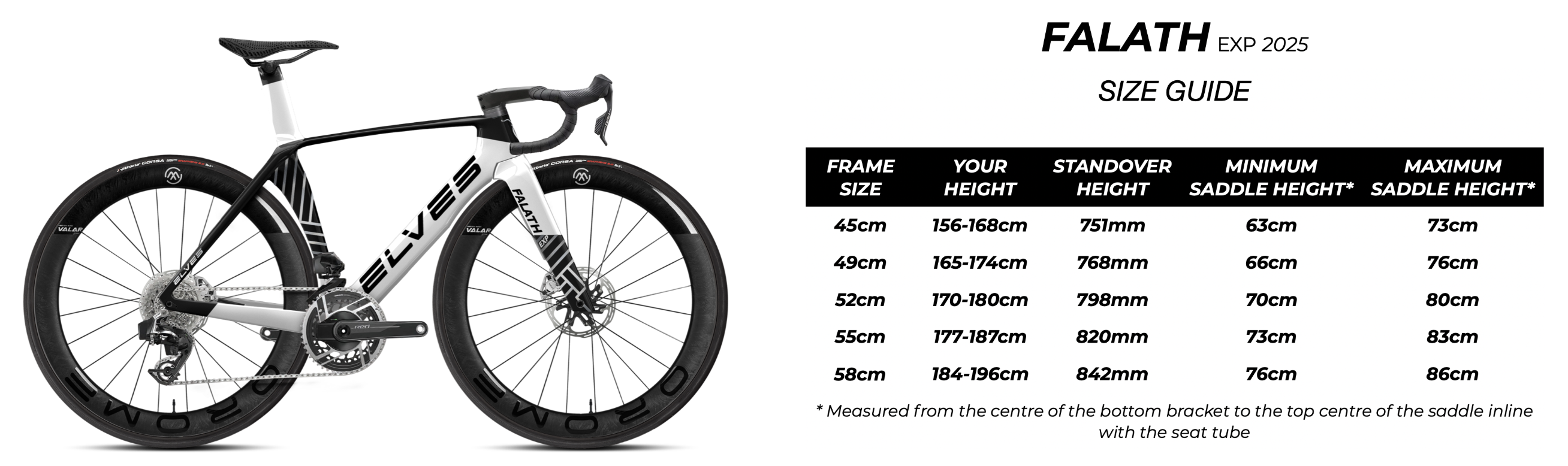

Sizing:



Geometry:

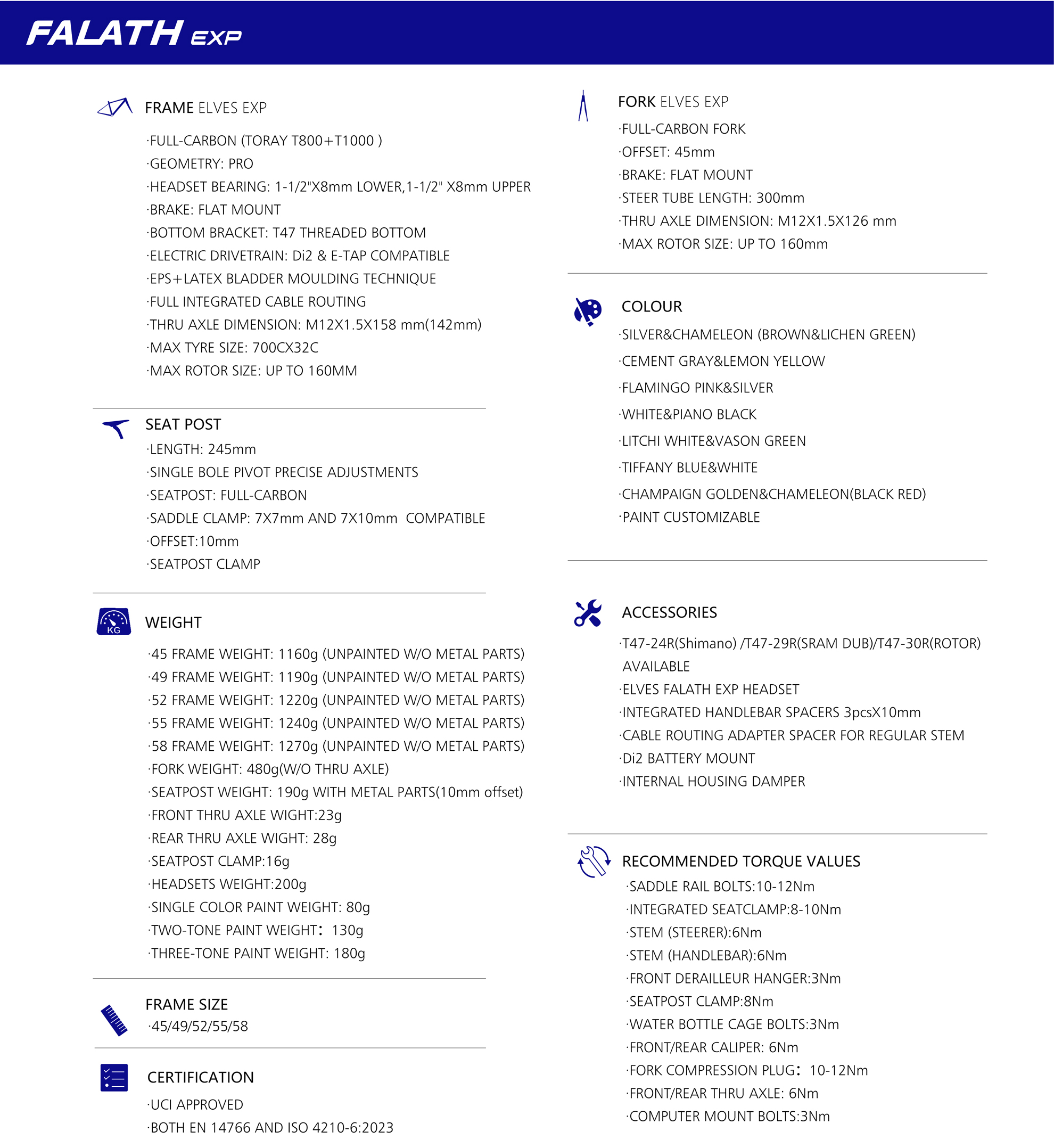

Detailed Specifications:



Certification:

Certified to EN 14766 and ISO 3210-6: 2023
UCI Approved for use in UC race series

Description:

Building upon the global success of the Falath Evo, Elves Bikes research and development team have launched their latest aero frame, the Falath EXP utilising next-generation industry technology, with a focus on shock-absorbing performance, comfort, strength and aerodynamic efficiency.

At the core of the Falath EXP’s design philosophy sits an integrated aerodynamic suspension design of the rear seat stay. A topology optimisation algorithm is employed for frame structural design which simultaneously optimises both aerodynamic performance and suspension capabilities.

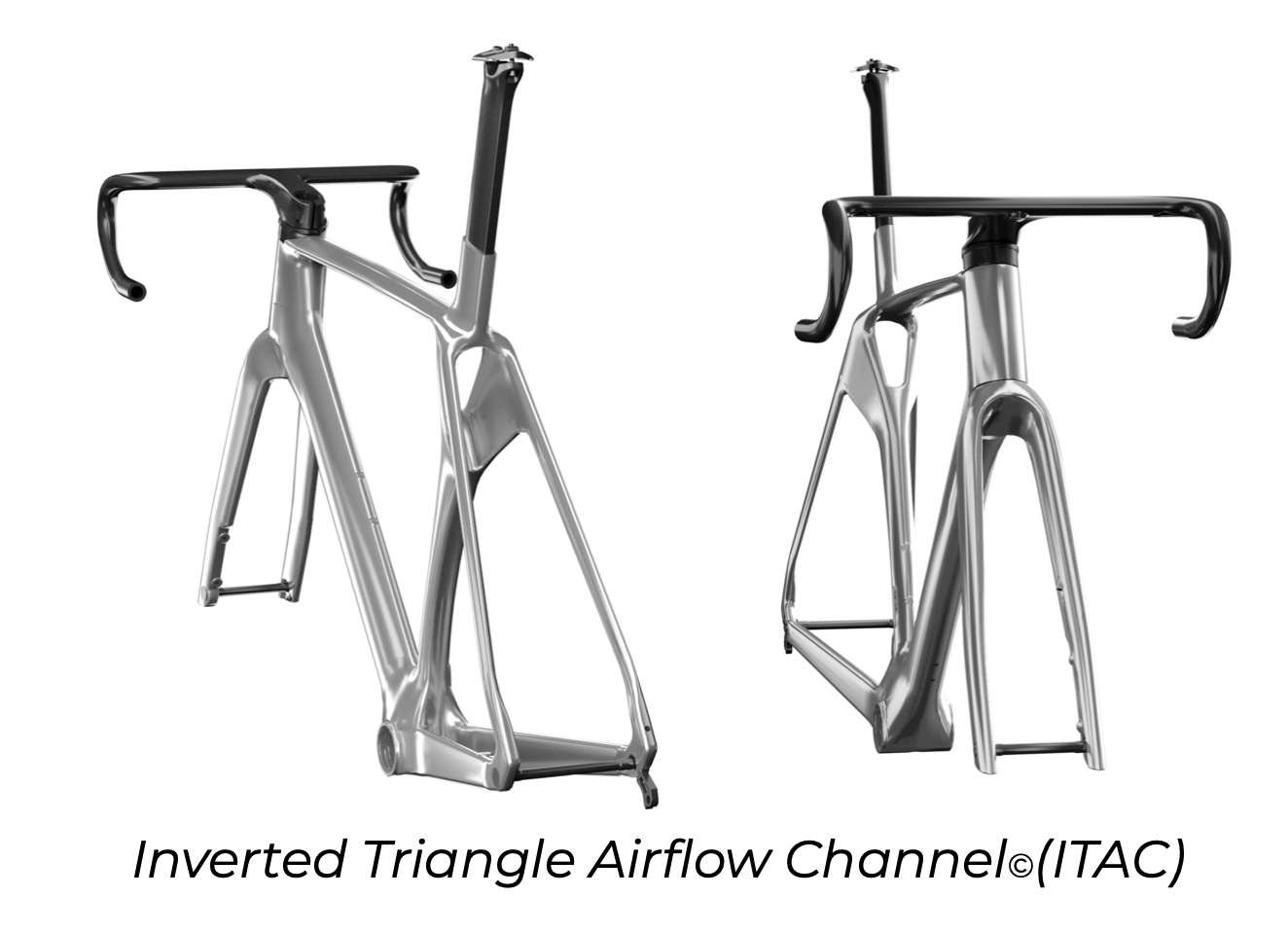

The Inverted Triangle Airflow Channel (ITAC), is a meticulously engineered rear triangle that is formed by the seat stay and seat tube creating an airflow channel that minimises wind resistance, reduces drag coefficient and turbulence, allowing riders to achieve improved overall performance.

Beyond aerodynamics, the inverted triangle structure creates controlled vertical flexible movement of the integrated seat post, whilst retaining superior structural strength, stability and stiffness distribution across the frame. In real world riding, this vertical movement is designed to absorb road vibrations, especially on uneven terrain, resulting in a smoother, more comfortable riding experience without the requirement to compromise stiffness & performance by incorporating unnecessary flex into the wider frame. To further enhance the EXP’s rider appeal, the frame has been designed with tyre clearance of up to 32c providing enhanced grip, comfort and speed on today’s roads.

Engineered with high-tensile Japanese Toray T800 carbon fibre, reinforced with T1000 in key performance areas such as the bottom bracket and headtube, and combined with its inverted triangle structure, the Falath EXP has been designed to optimise stress distribution, durability, aerodynamics and overall stiffness, resulting in superior power transfer in high-intensity riding conditions. To enhance the structural integrity of the frame, the Elves have utilised the EPS and latex bladder moulding process in the production of the Falath EXP. This advanced technique results in a smoother internal frame structure by eliminating folds, lines, and creases, ensuring more uniform walls and ultimately creating a stronger, more durable frame.

In collaboration with DSD, our design house in Hong Kong, and guided by invaluable customer insight, the Falath EXP 2025 debuts in seven modern colourways. Our philosophy is rooted in a deep understanding of unmet rider needs, which has shaped our commitment to accessibility and personalisation. As such, custom-painted frames, which remain at the heart of our vision, will be available for no additional cost.

Available in sizes 45cm, 49cm, 52cm 55cm and 58cm the Falath EXP features complementary accessories including a choice of either a T47-24mm Shimano compatible, T47-28.99mm SRAM DUB or T47-30mm bottom bracket. Further the Falath EXP will be supplied, as standard, with the headset, handlebars spacers, thru axles, Di2 battery holder and internal cable dampeners.

At Elves, your safety is our top priority, setting our brand apart by consistently exceeding industry standards. Like all our high-quality products, the Mori Aerox frame is backed by a 5-year global warranty, while our handlebars and wheelsets come with a 2-year warranty, and saddles are covered for one year.

Inspired by you and created by us, Elves Bikes are committed to producing exceptional quality frames and bikes at affordable prices globally. Our aim is to challenge the price point for performance and close the industry gap, ensuring that our riders are not making the tough choice between quality or cost, we assure our customers of both.

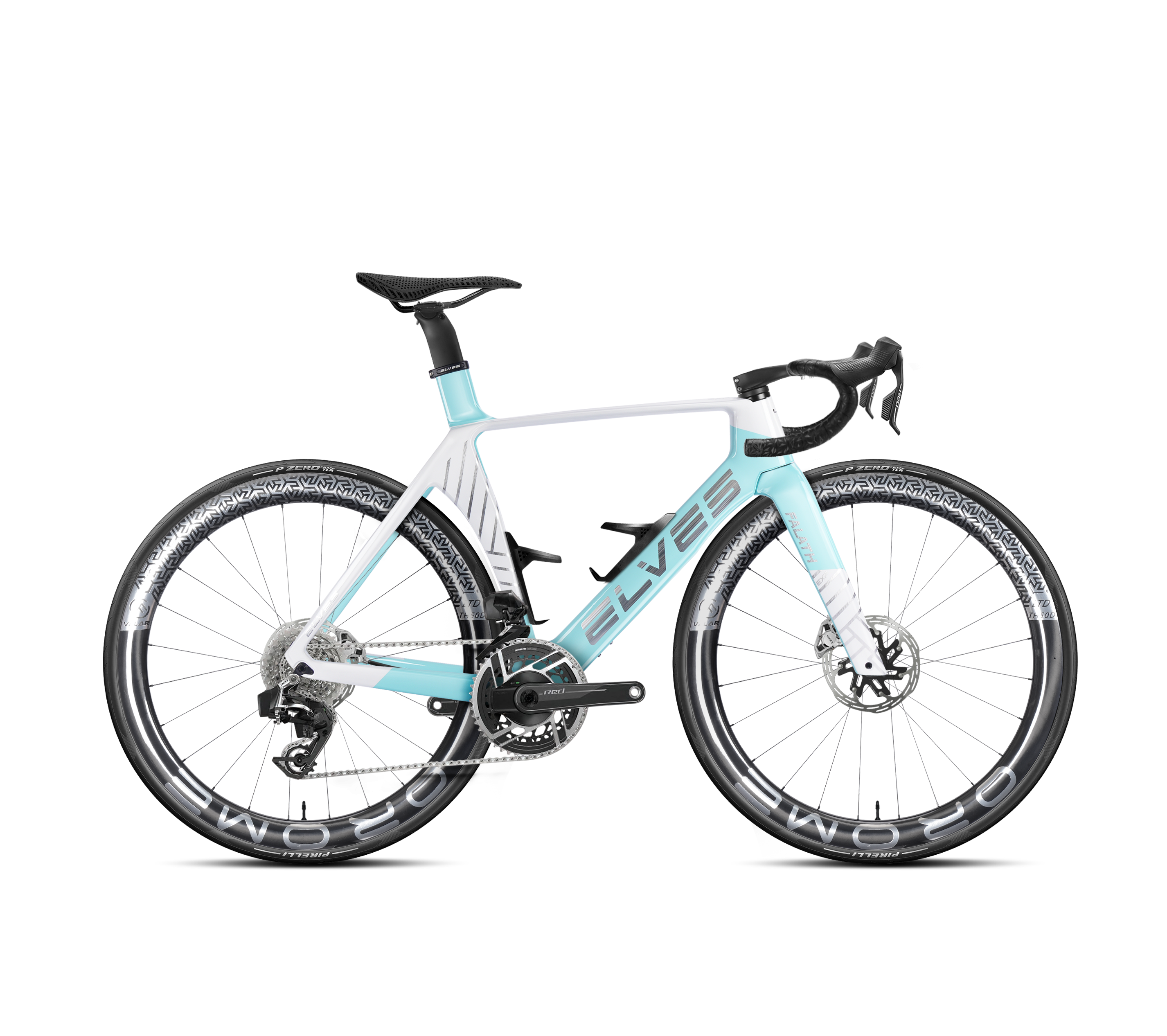

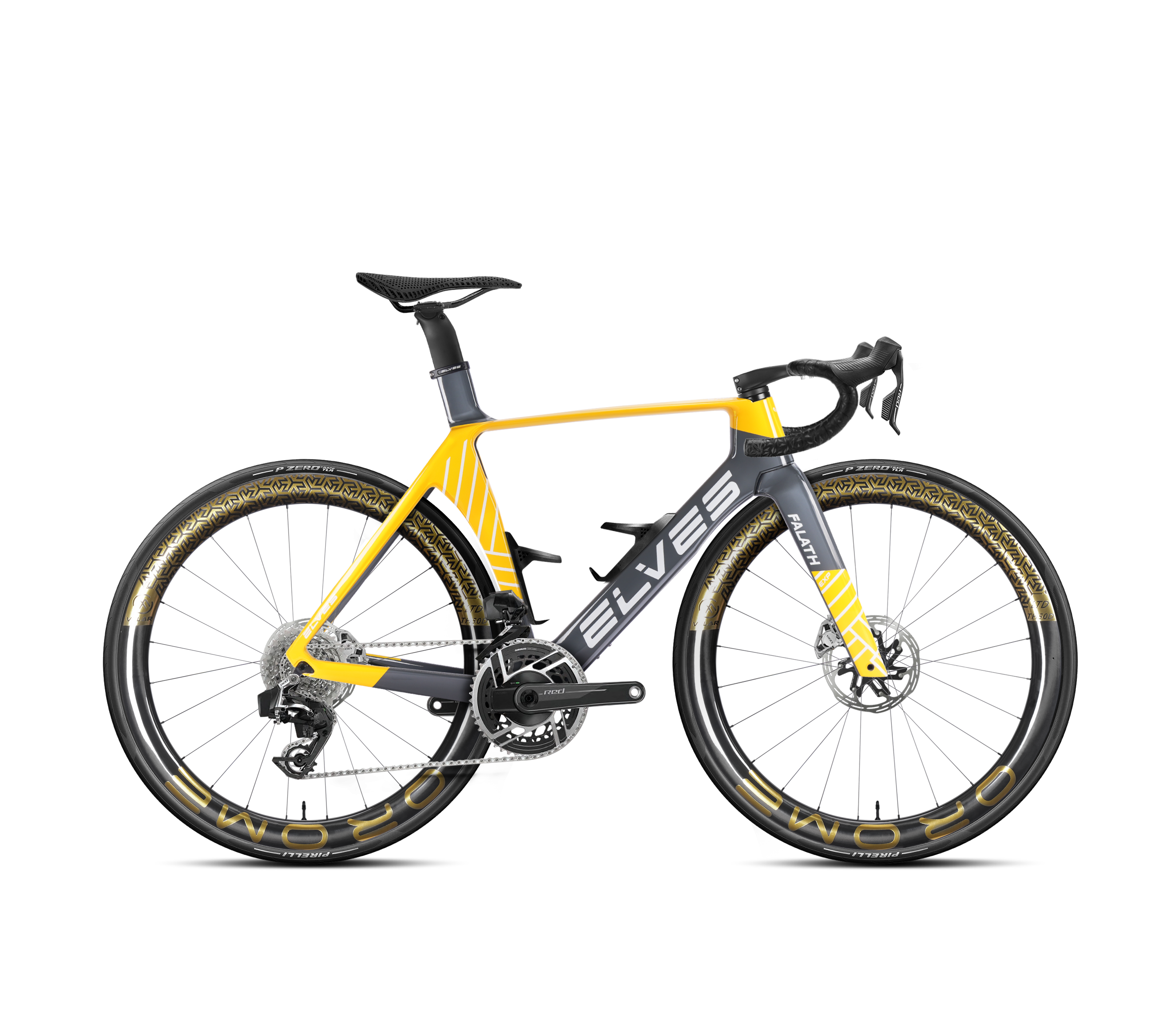

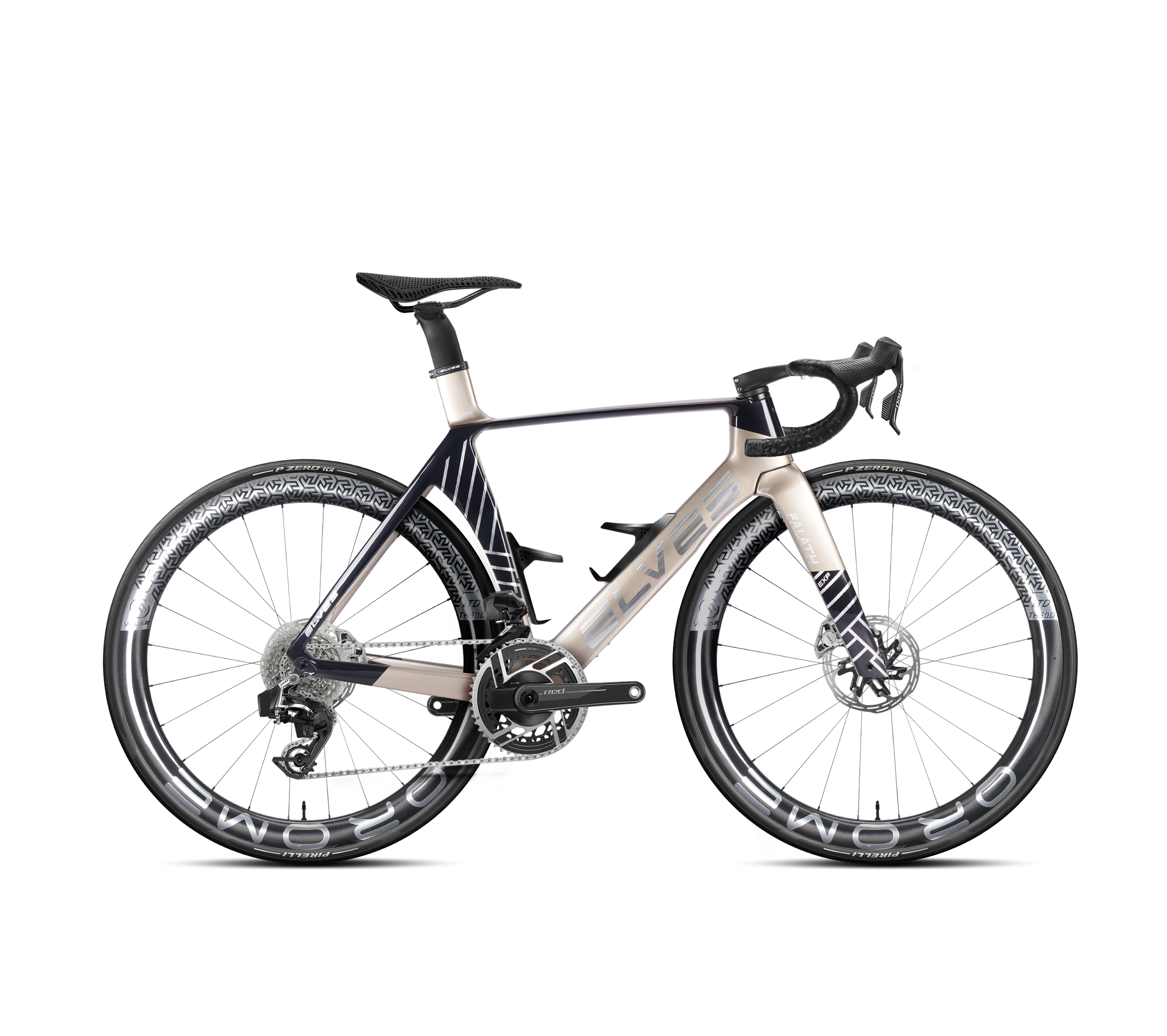

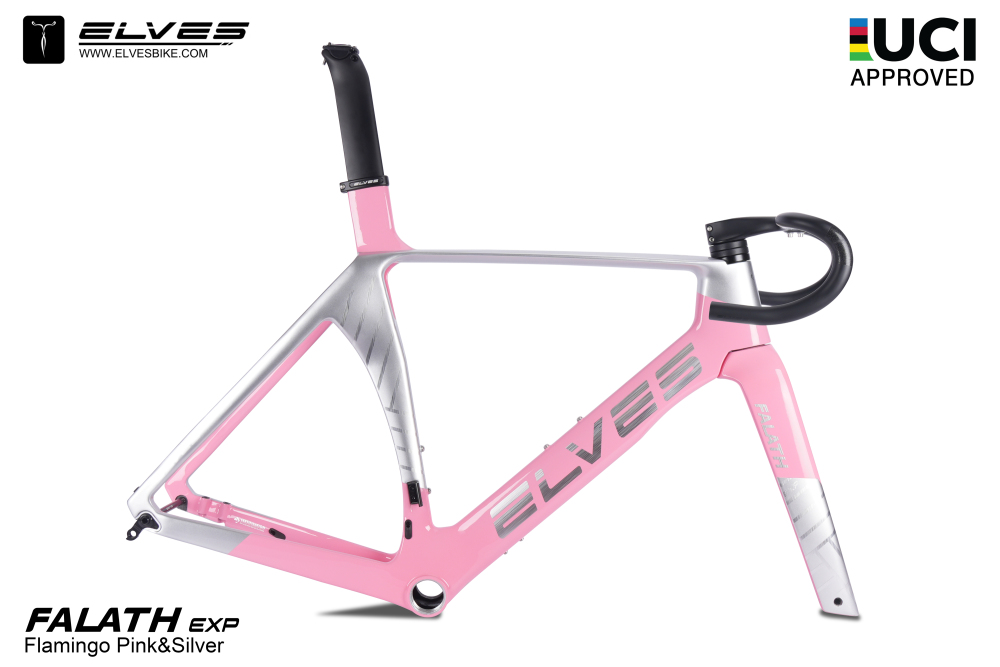

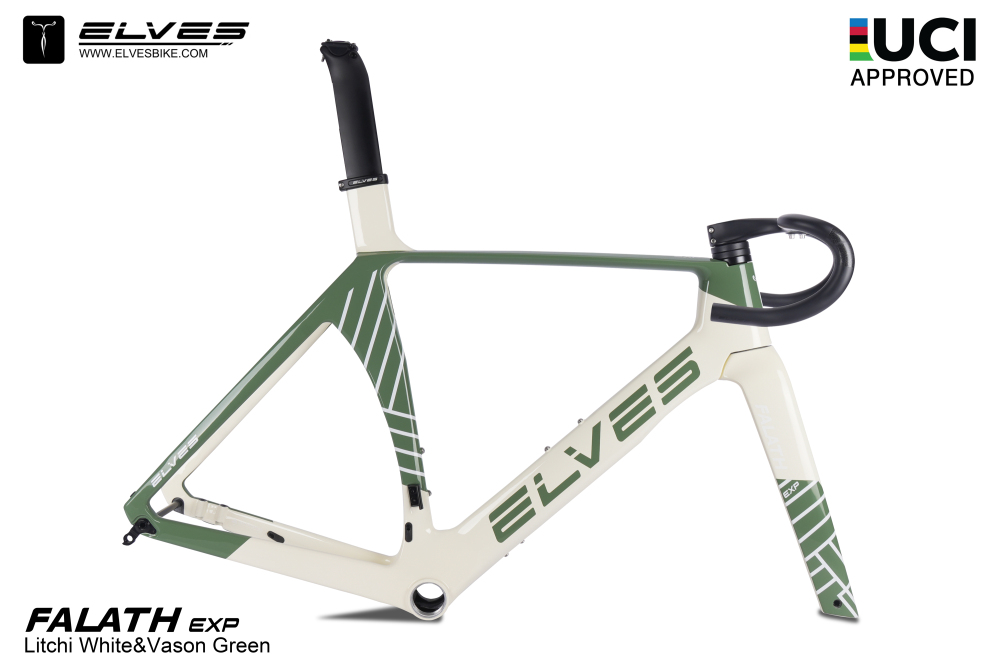

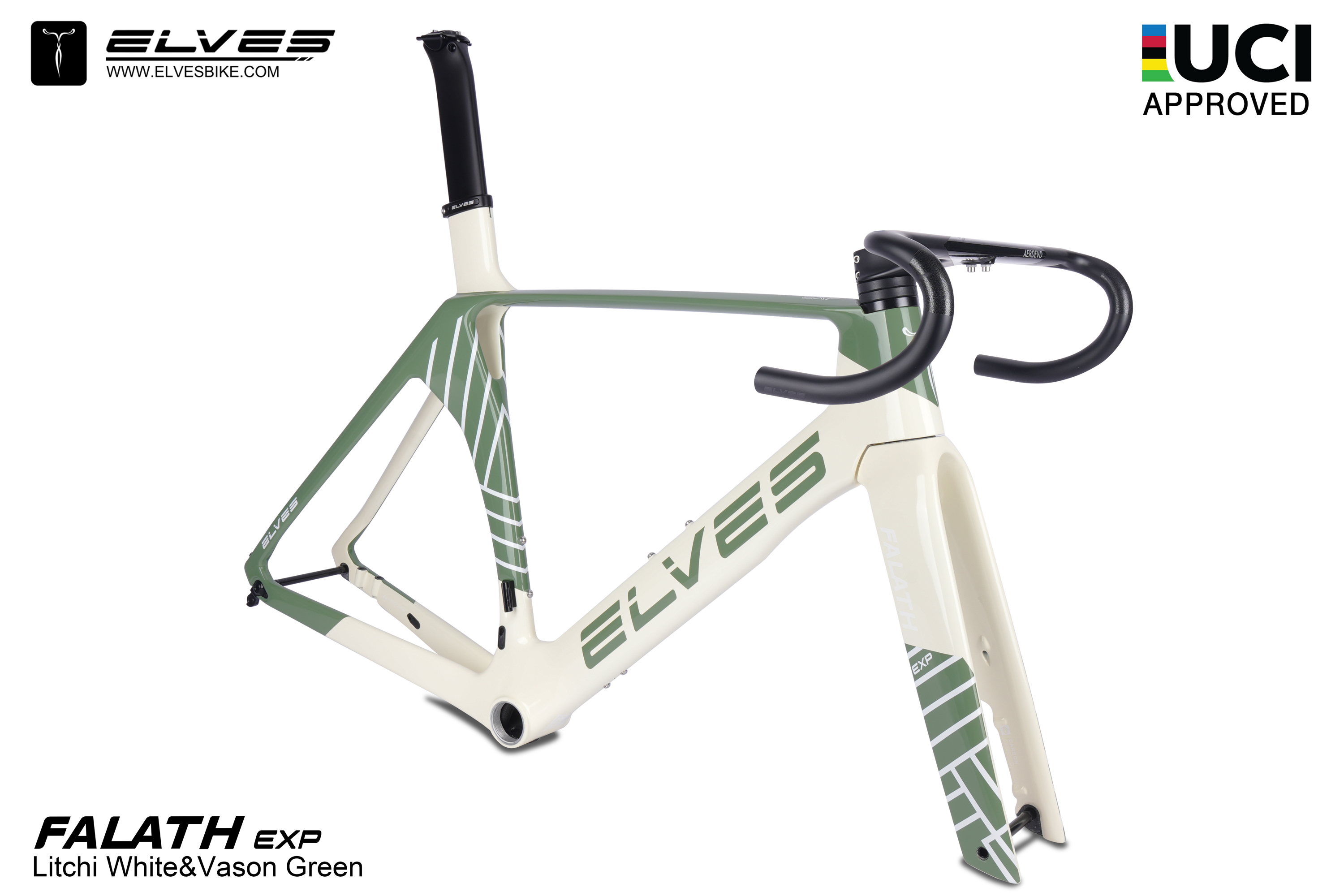

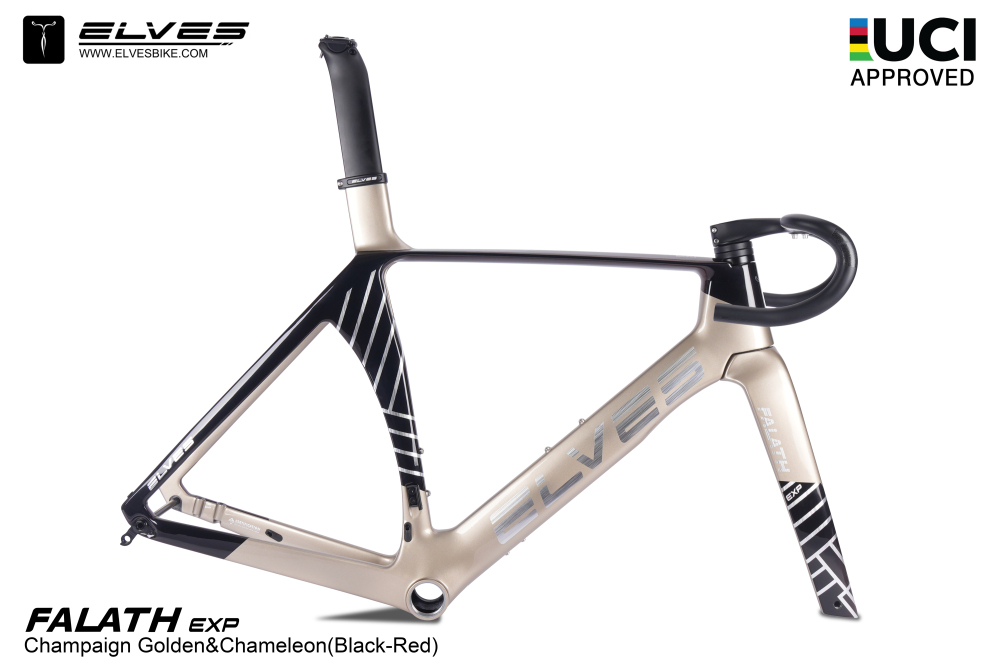

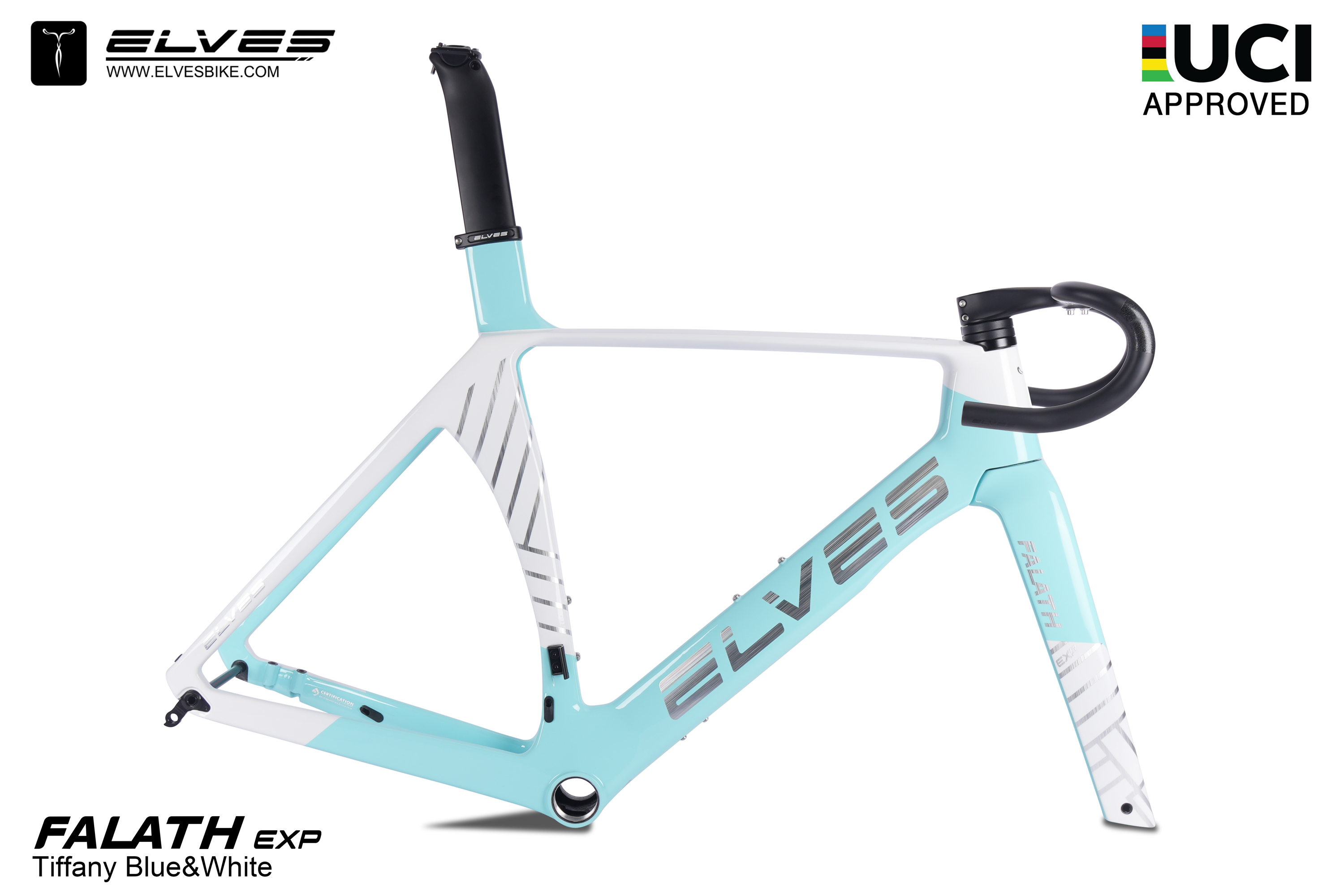

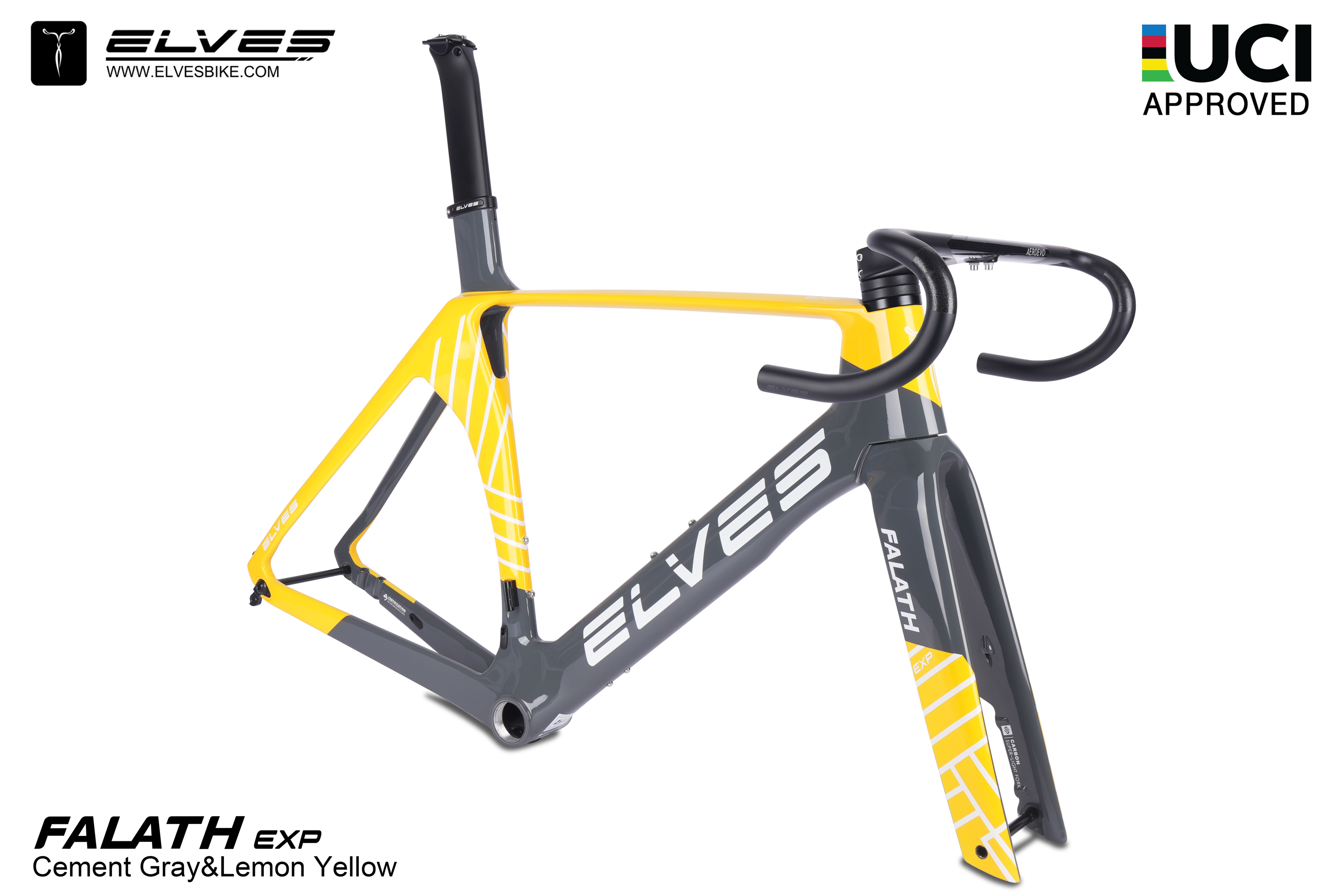

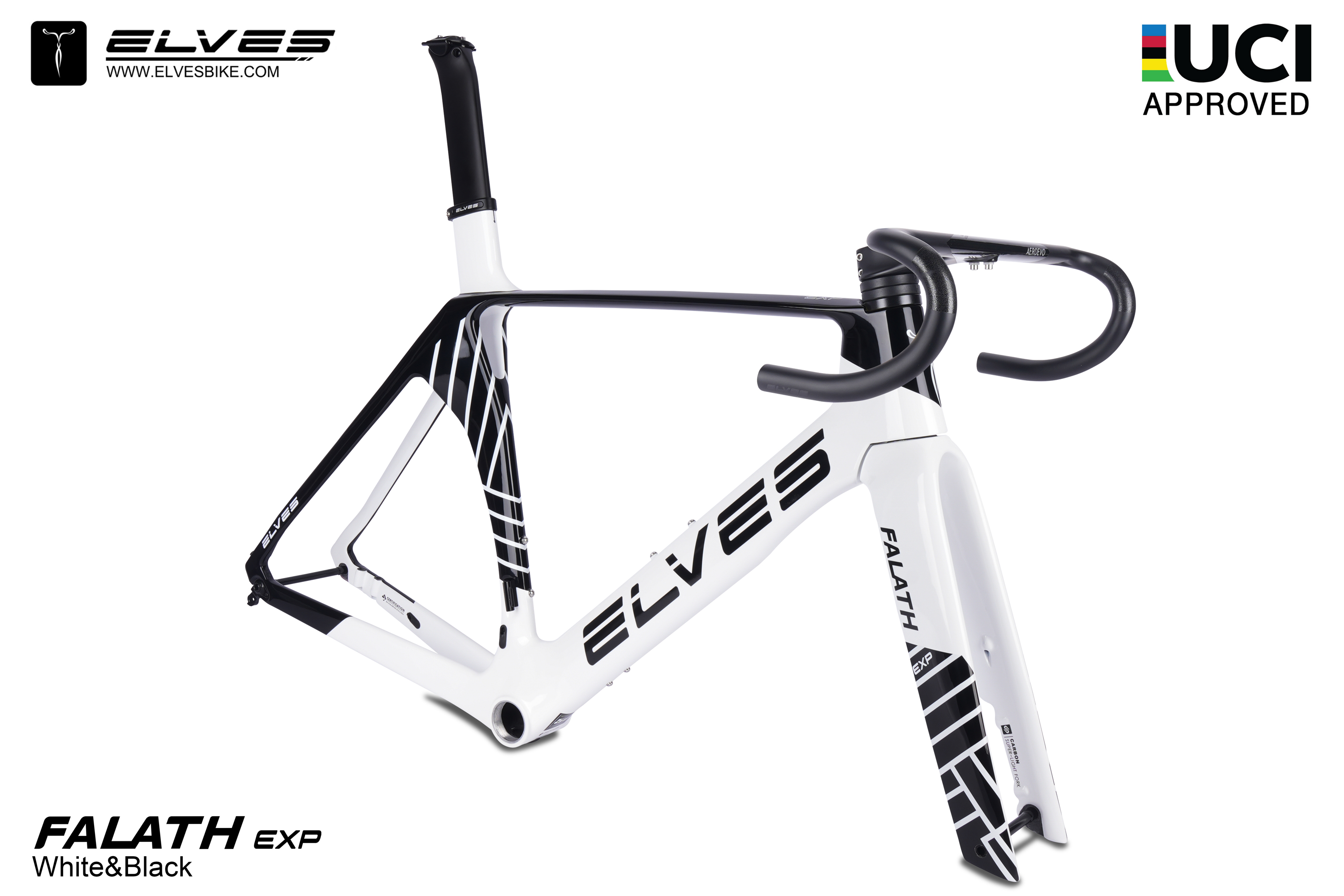

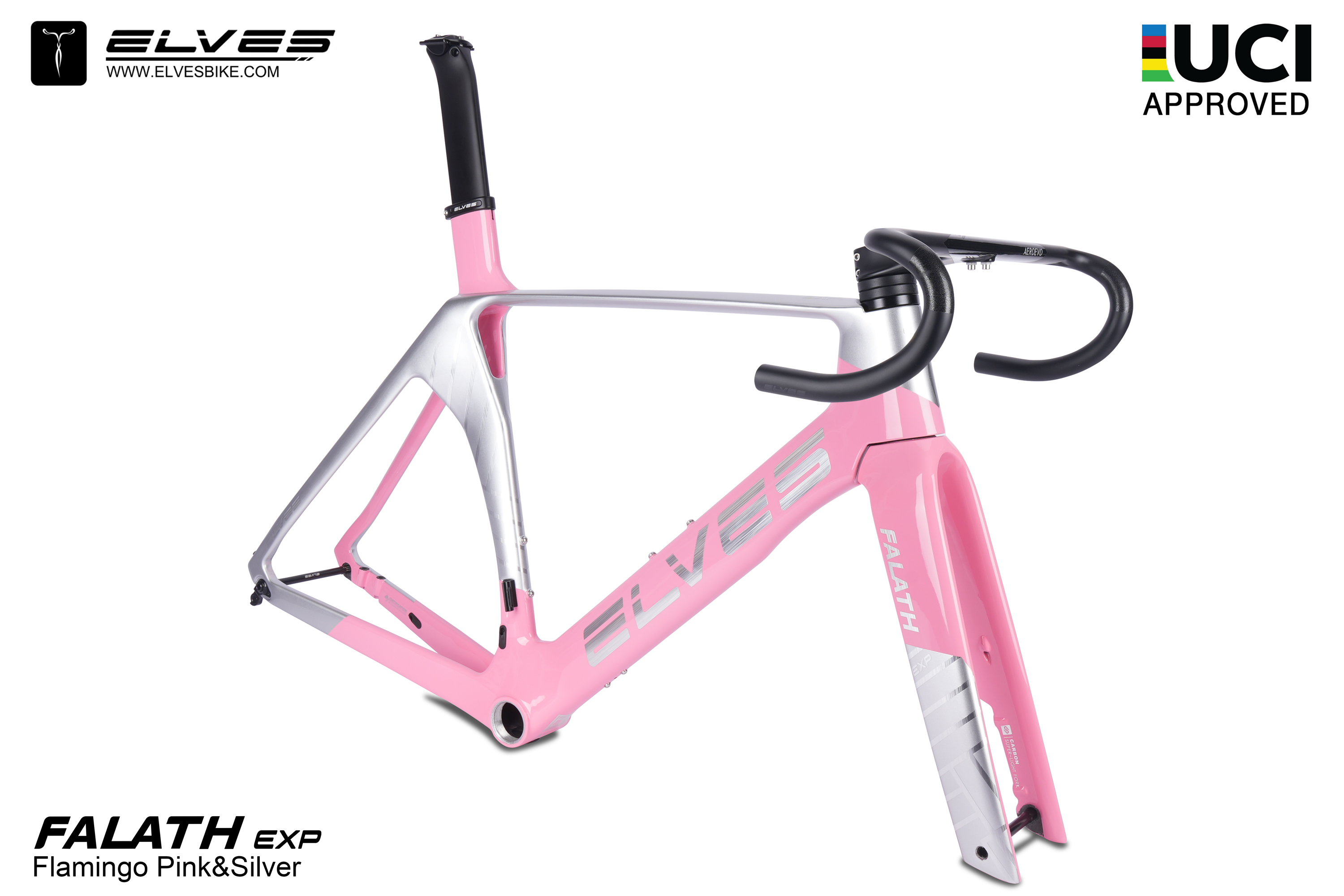

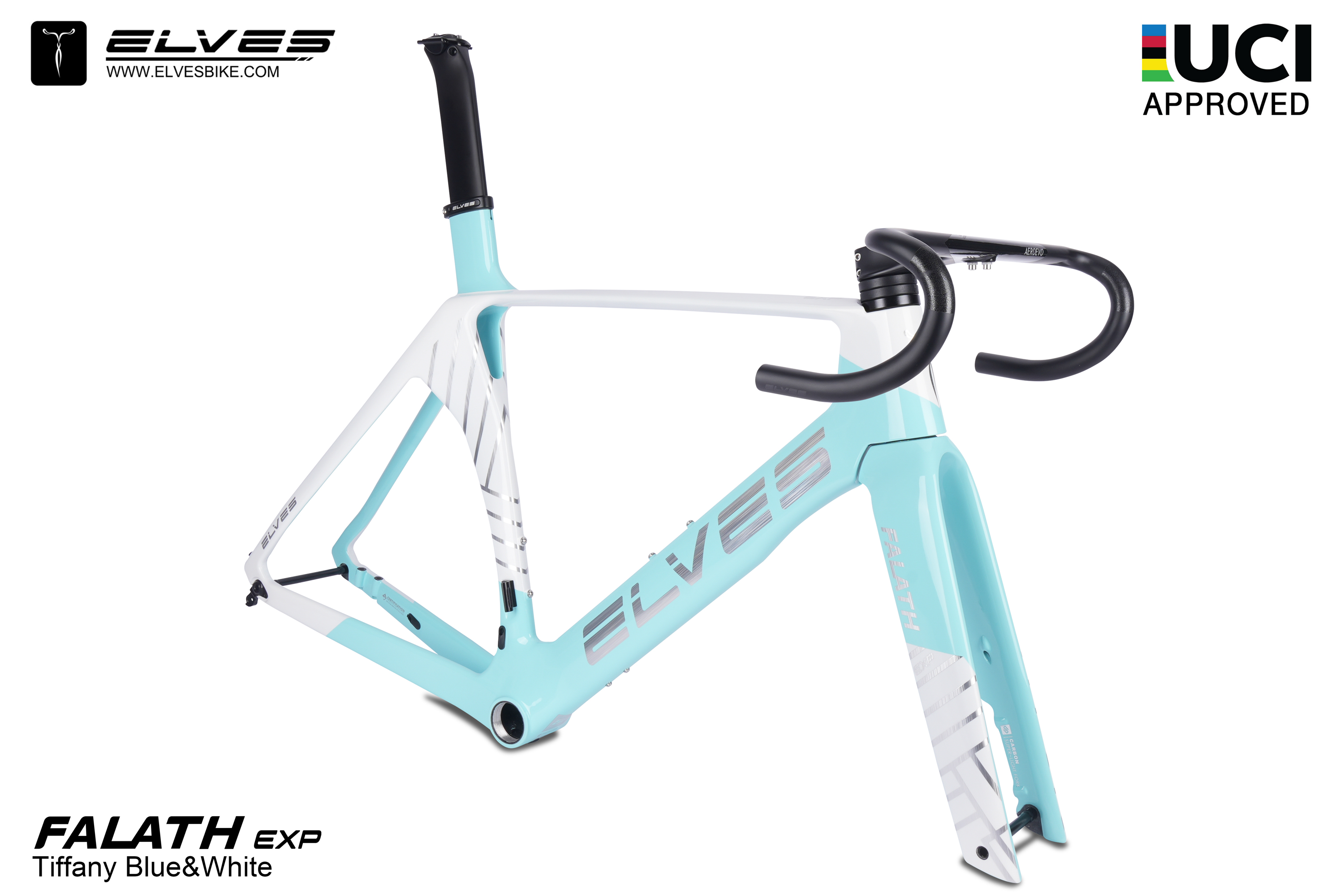

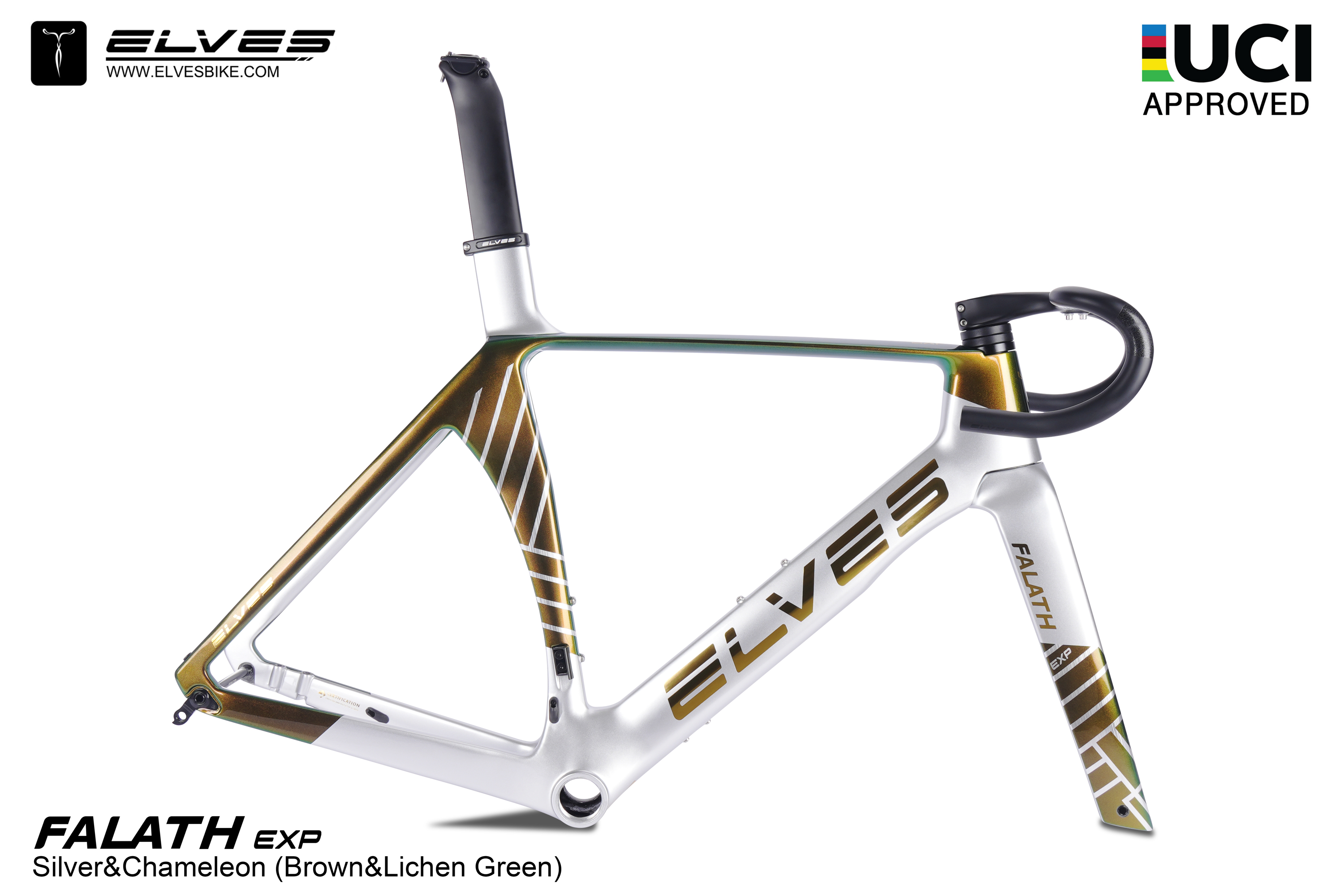

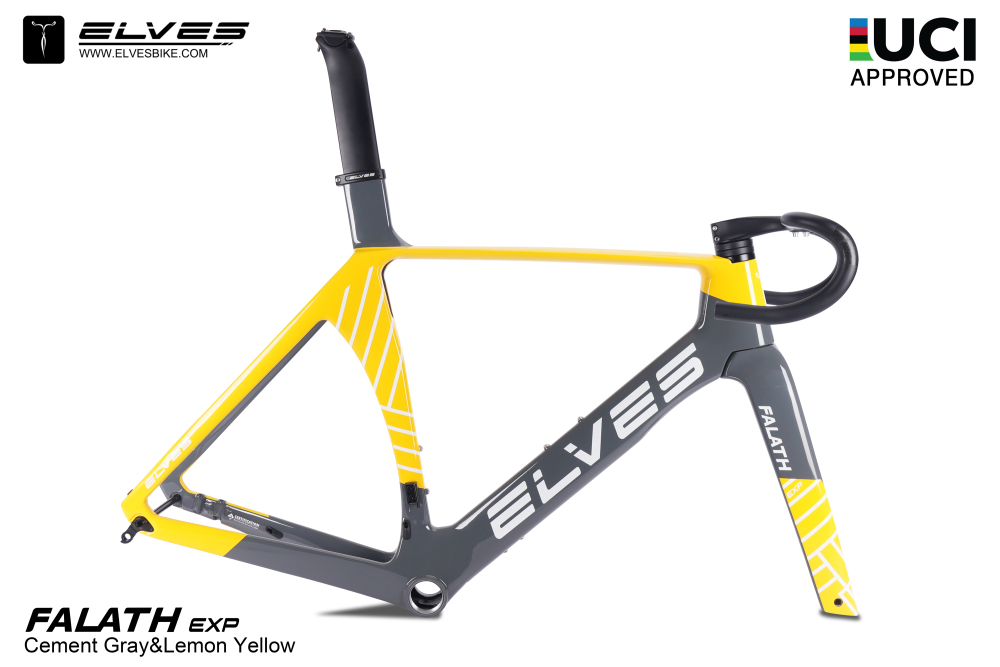

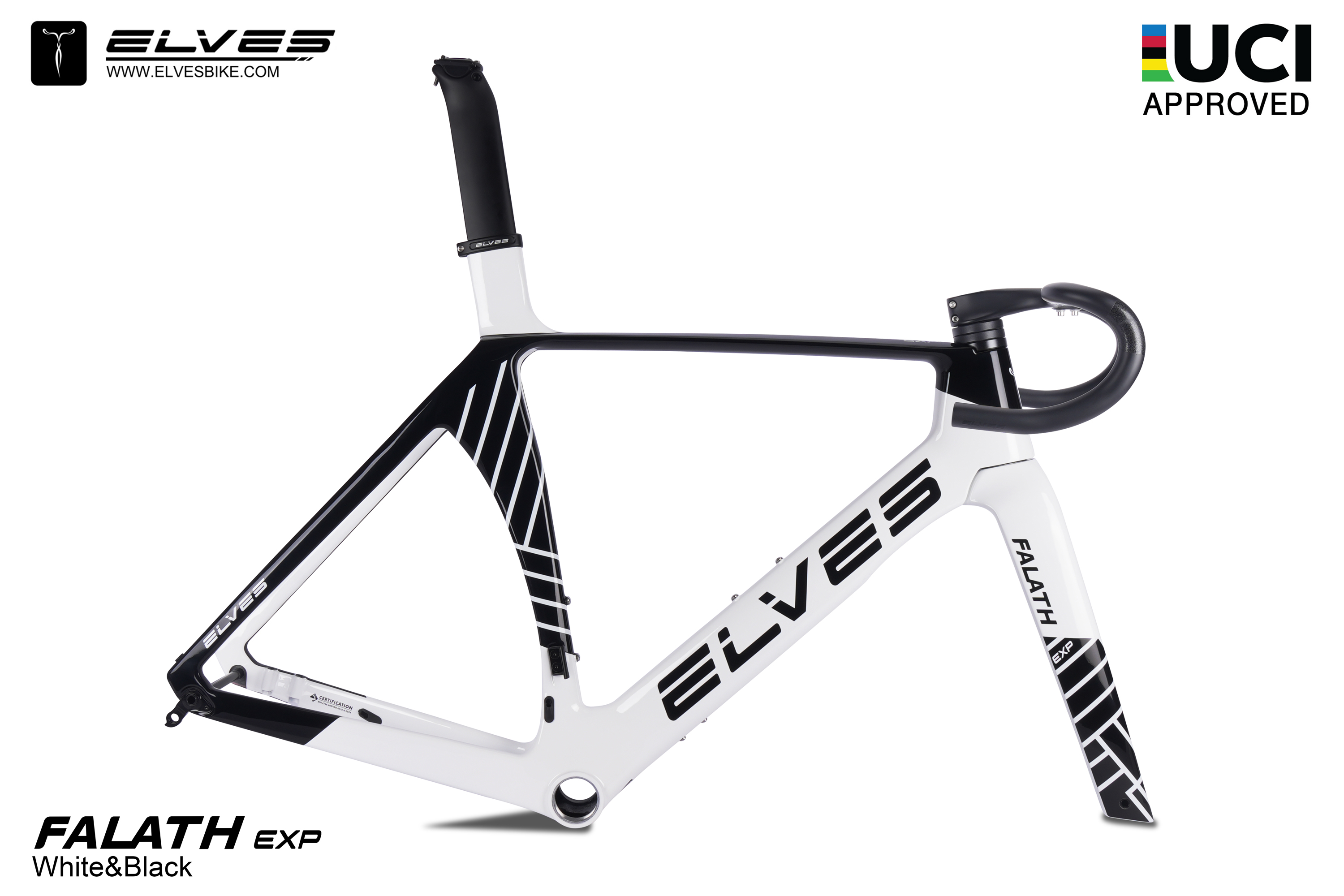

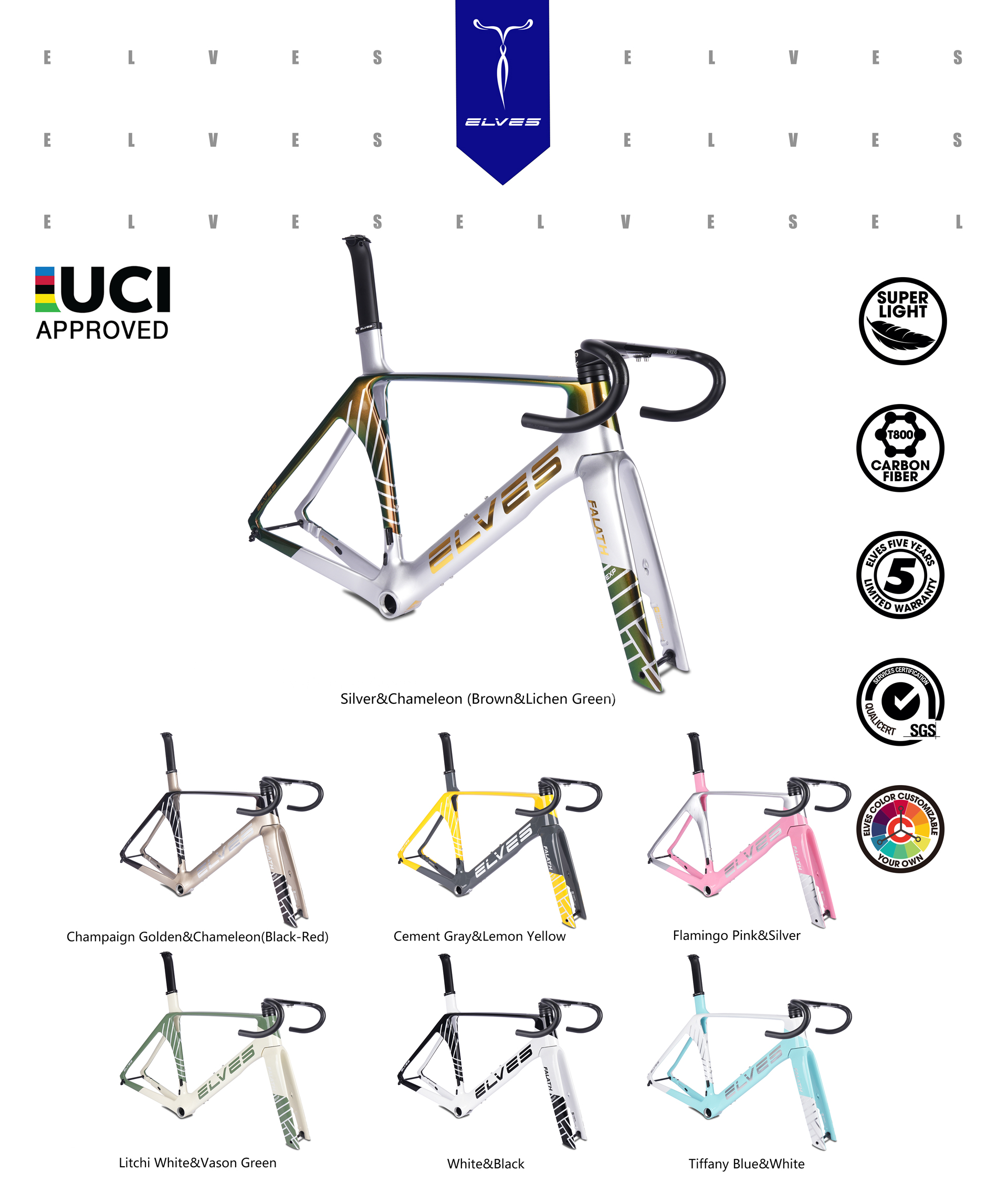

Standard Frame Colours:

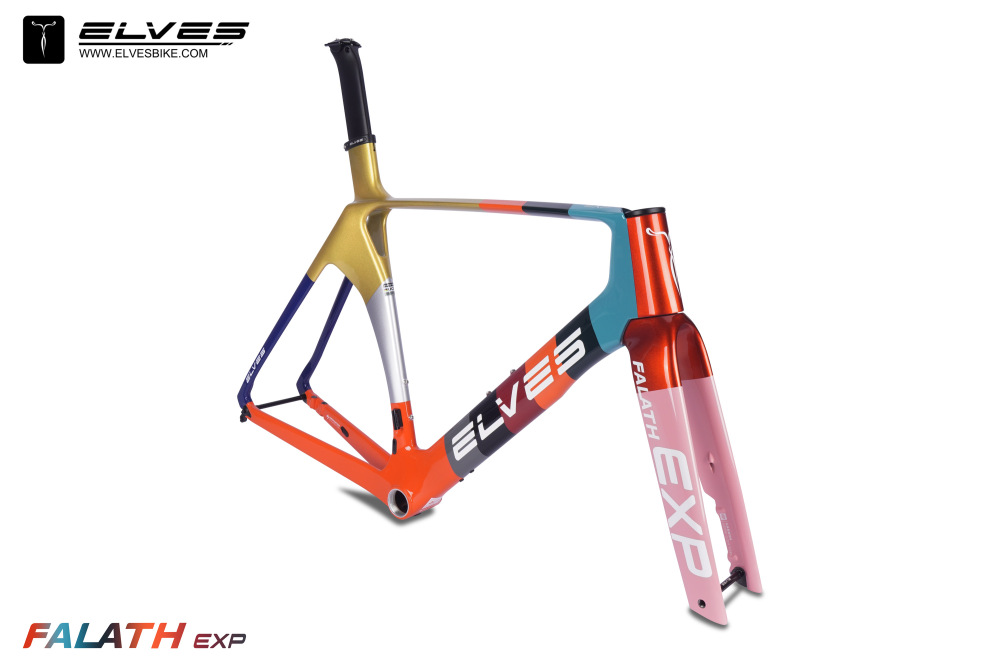

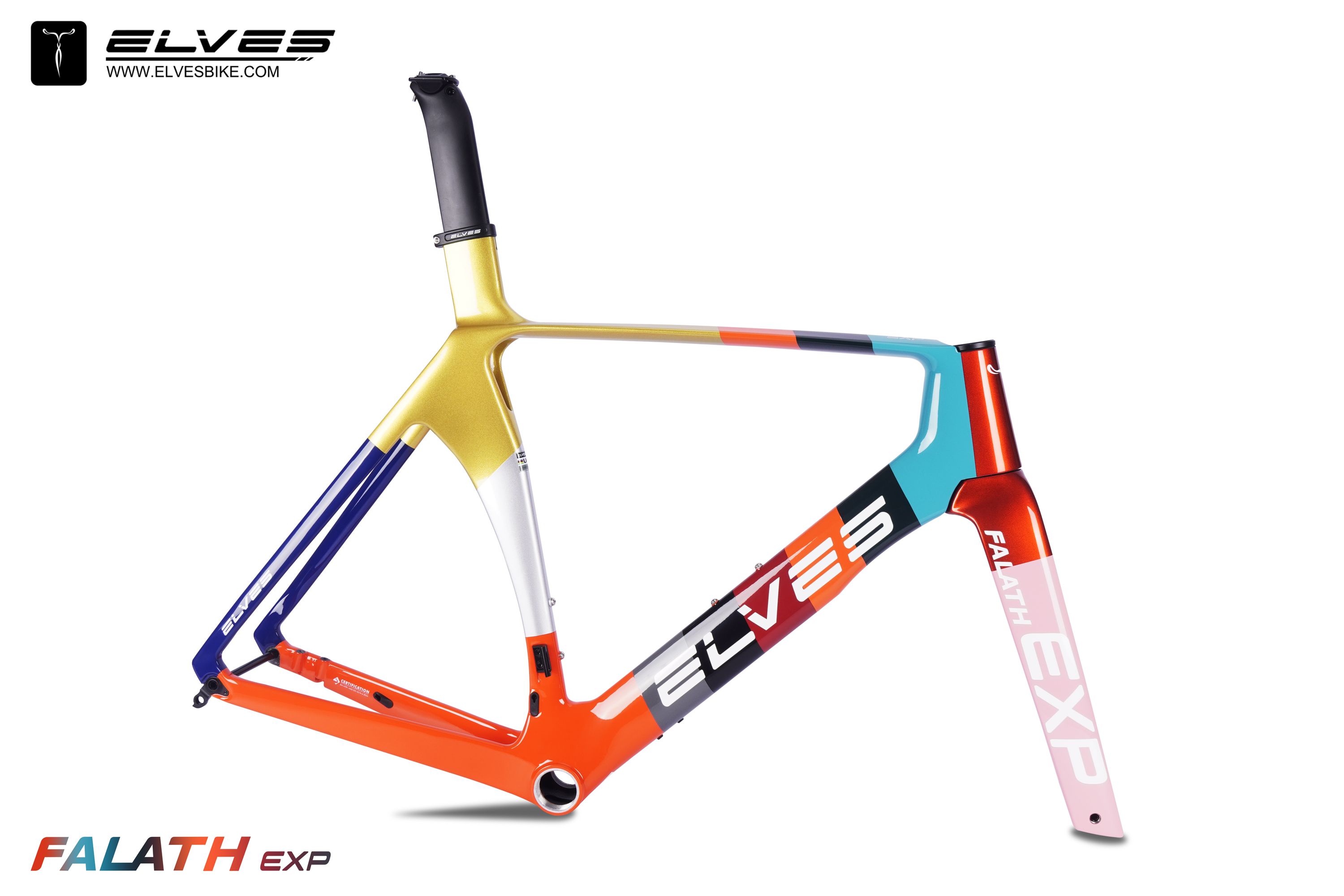

Harlequin Limited Edition - Enquire now.

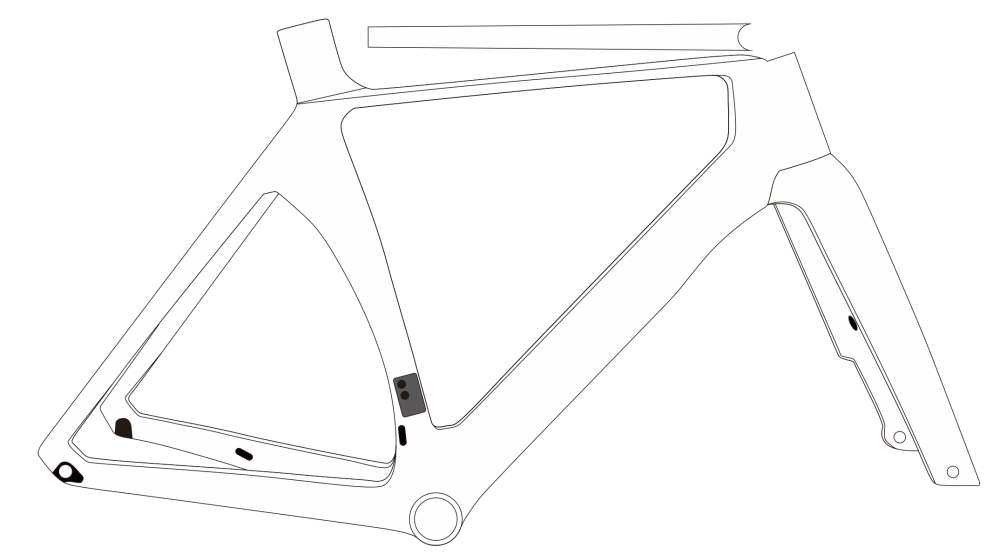

Elves Bikes offer more than 100 standard paints and more than 10 special chameleon paints, allowing you to design your own unique custom frame. All Elves frames are painted with the highest quality environmental paints and our finishes are stunning.

The process is so easy:

1. Click Custom Paint in the navigation menu above
2. Choose your design and your paint
4. Fill in the form
5. Click “Submit”
6. Your design mockup will be returned to you with in 24 hours.
