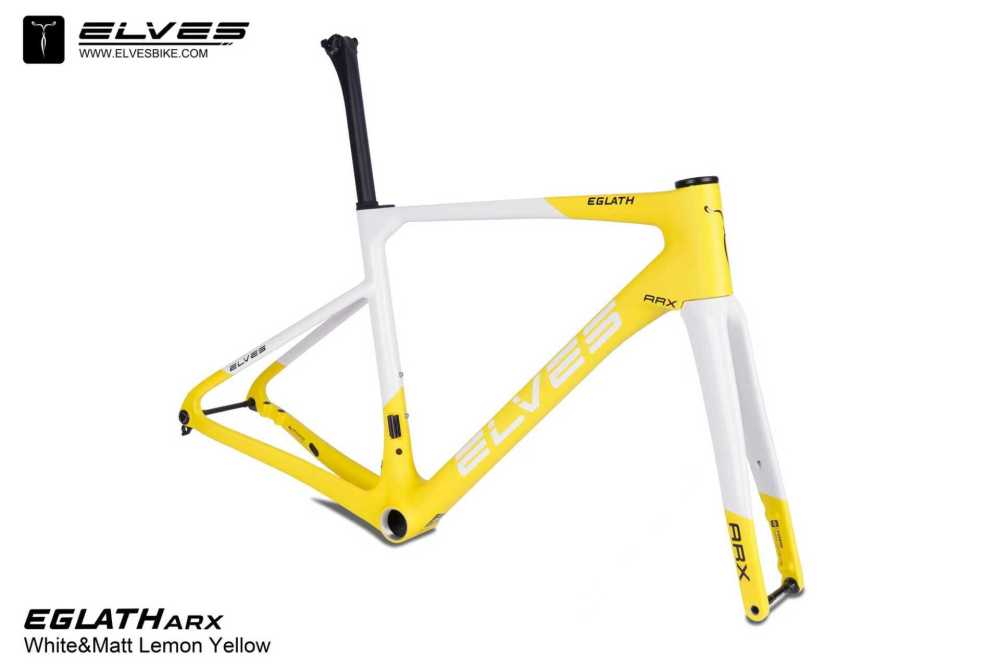

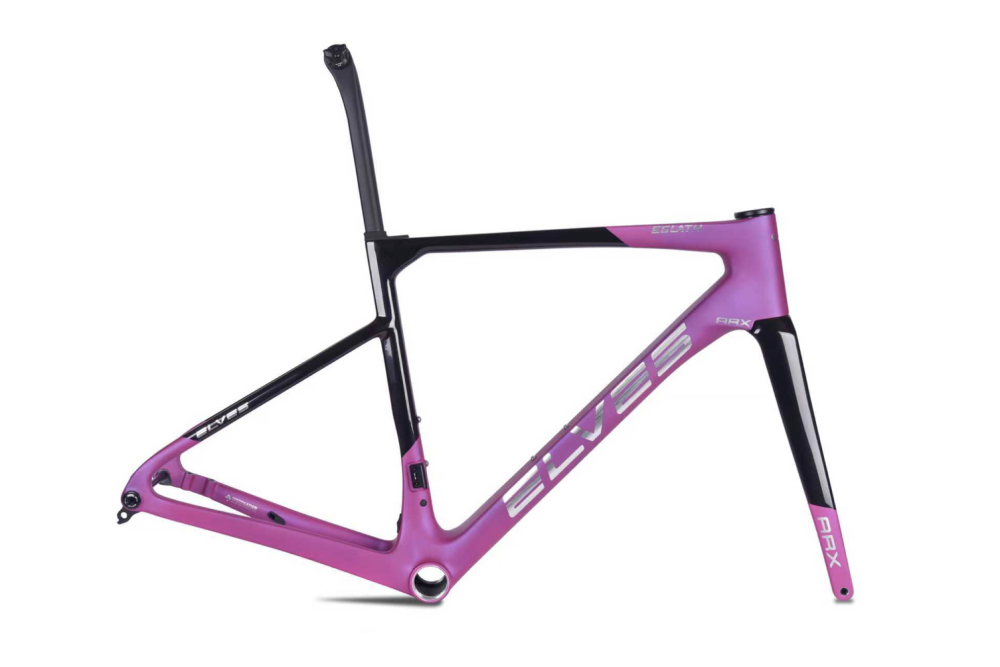

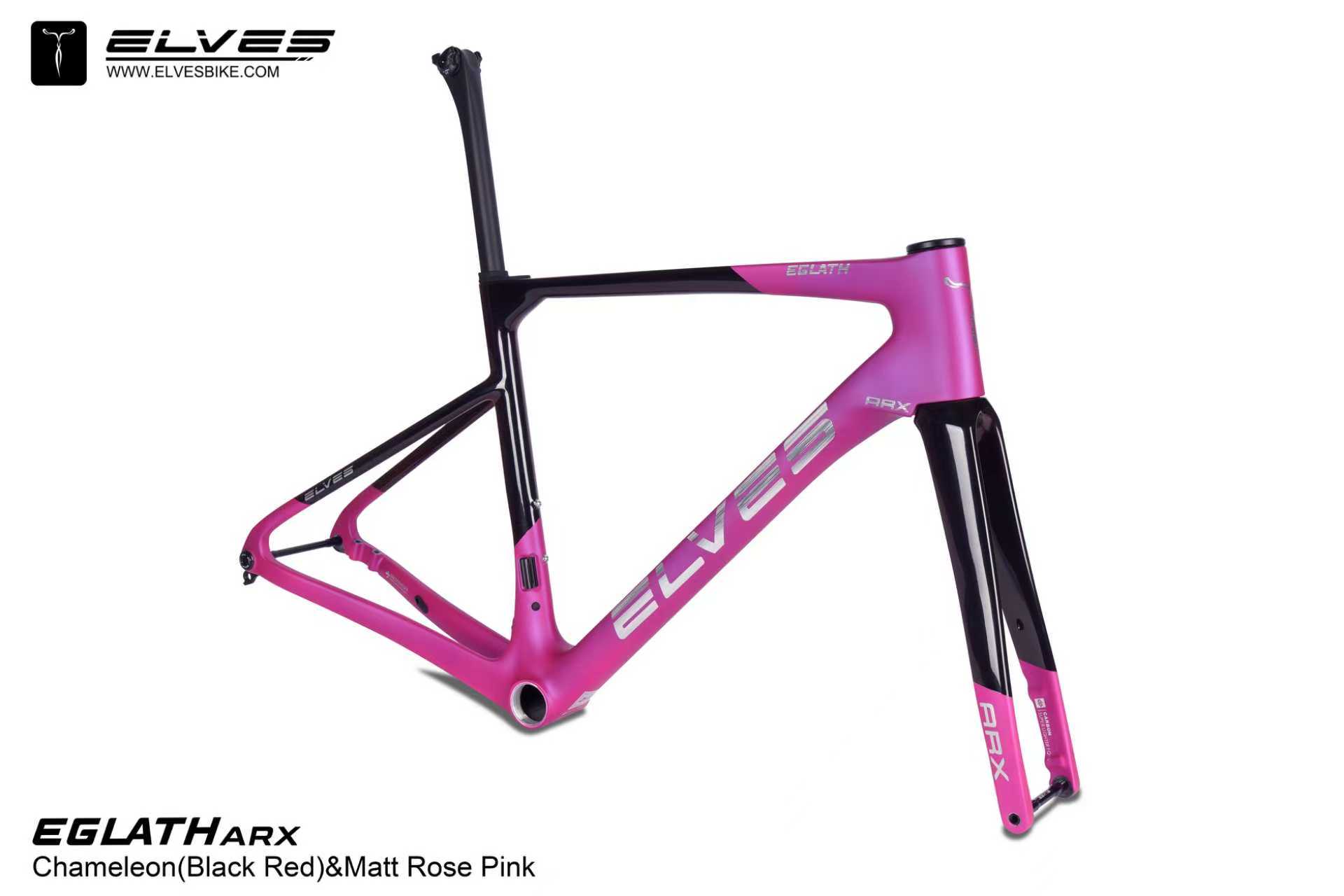

ELVES EGLATH ARX Endurance Carbon Road Disc Frame , All-Road carbon Road Bike

Eglath ARX - (Endurance)


Specification Overview:

Frame size & weights: 46cm (TBC), 49cm (TBC), 52cm (TBC), 55cm (TBC), 58cm (TBC) - unpainted without metal parts (+/-30g)

Fork Weight: TBC with an uncut steerer

Handlebars: (Bought seperately), compatible with the AeroEvo bars, supplied with an adaptor for a standard bars and stem

Full internal cable routing

Max Tyre Clearance: 700c x 32C (35C on the fork)

Rotor Size: 140mm or 160mm

Bottom Bracket: Supplied - Threaded T47 Senicx Ceramic in a choice of Shimano 24mm, SRAM DUB 28.99 or 30mm - not fitted, tool supplied.

Gear Mech Hanger: 1 x Supplied - Standard (UDH). Spares hangers can be purchased on our 'spares' page.

Thru-axles: Supplied - 100mm (front) & 142mm (rear)

Seat post: Supplied - 12mm offset and 25mm offset, 350mm in length, 250g, two way adjustable clamp (7x7mm & 7x10mm clamps supplied)

Compatibility: Compatible with mechanical and electronic 10/11/12 speed groupsets inc Di2, AXS, UDH AXS, XPLR etc

Included with the frame: Fork, seat post & clamp, 7x7mm and 7x10mm saddle rails, headset & spacer, compression plug, bottom bracket (T47m- 24mm, 28.99mm or 30mm), thru axles, garmin mount (when bought with handlebars).

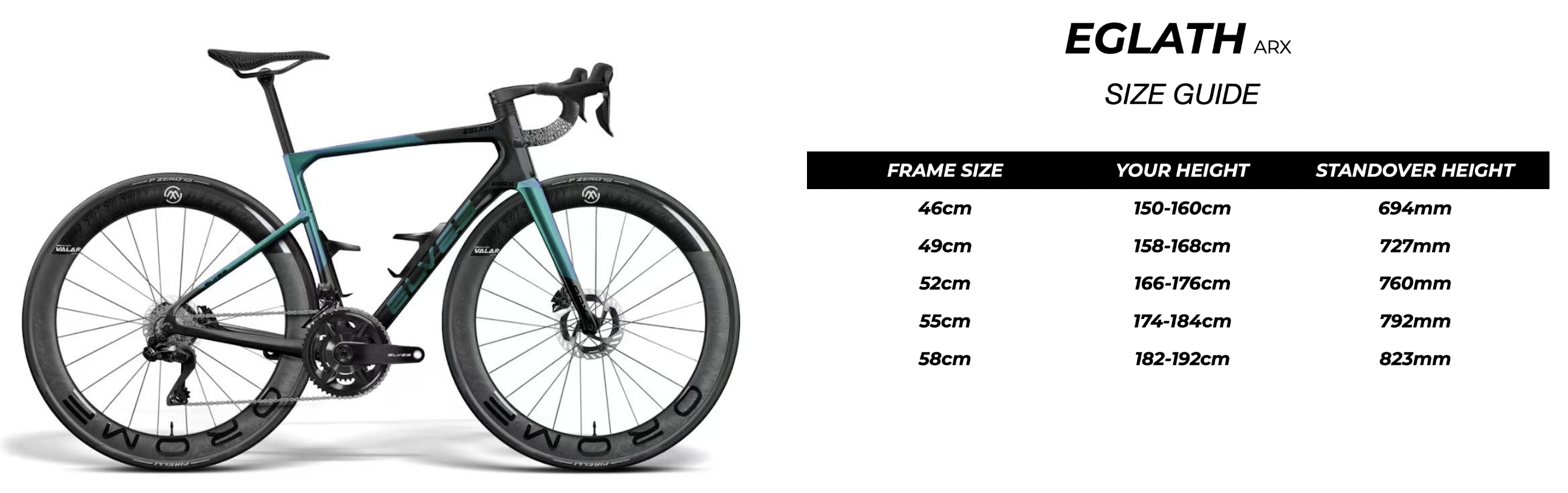

Sizing:

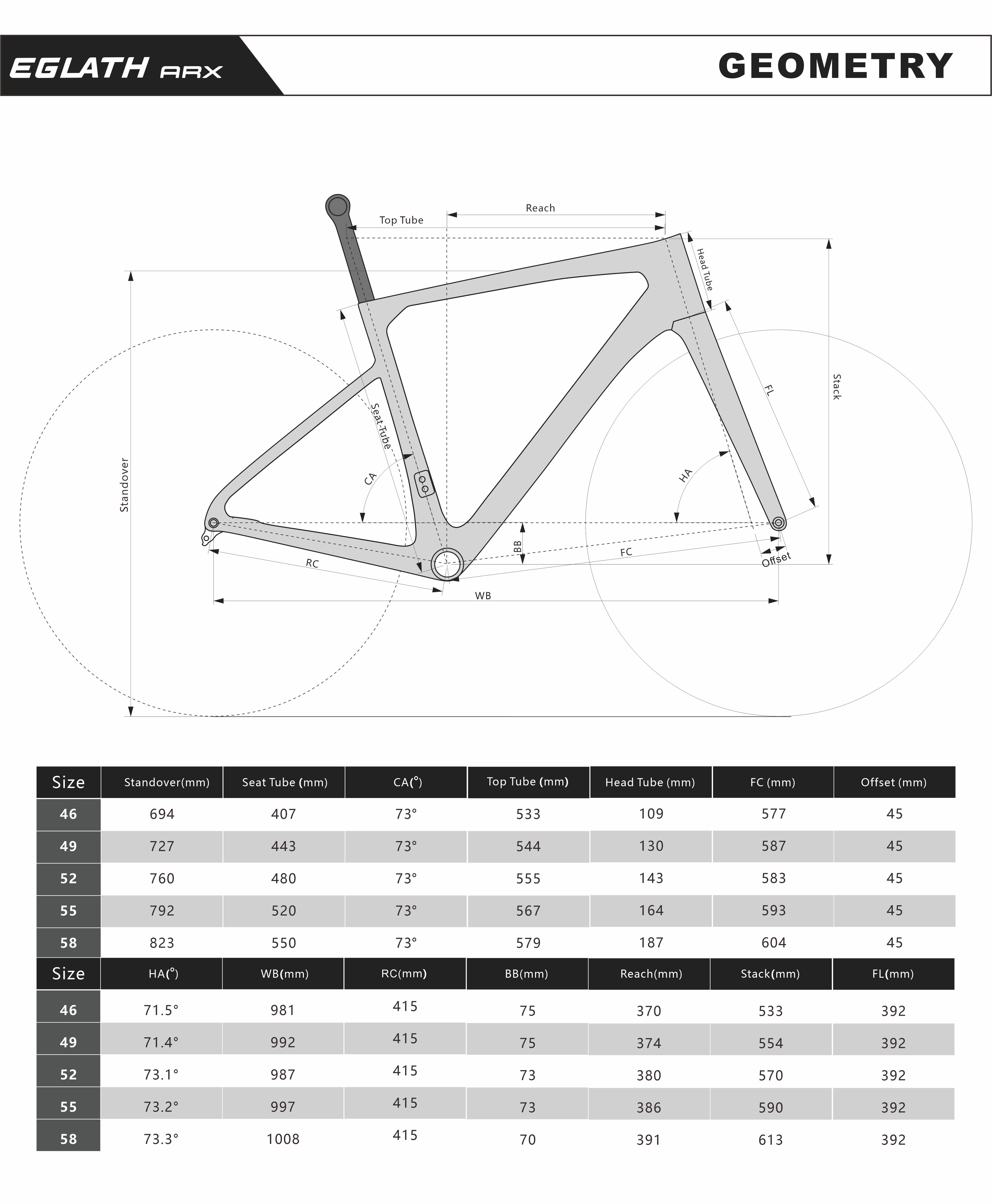

Geometry:

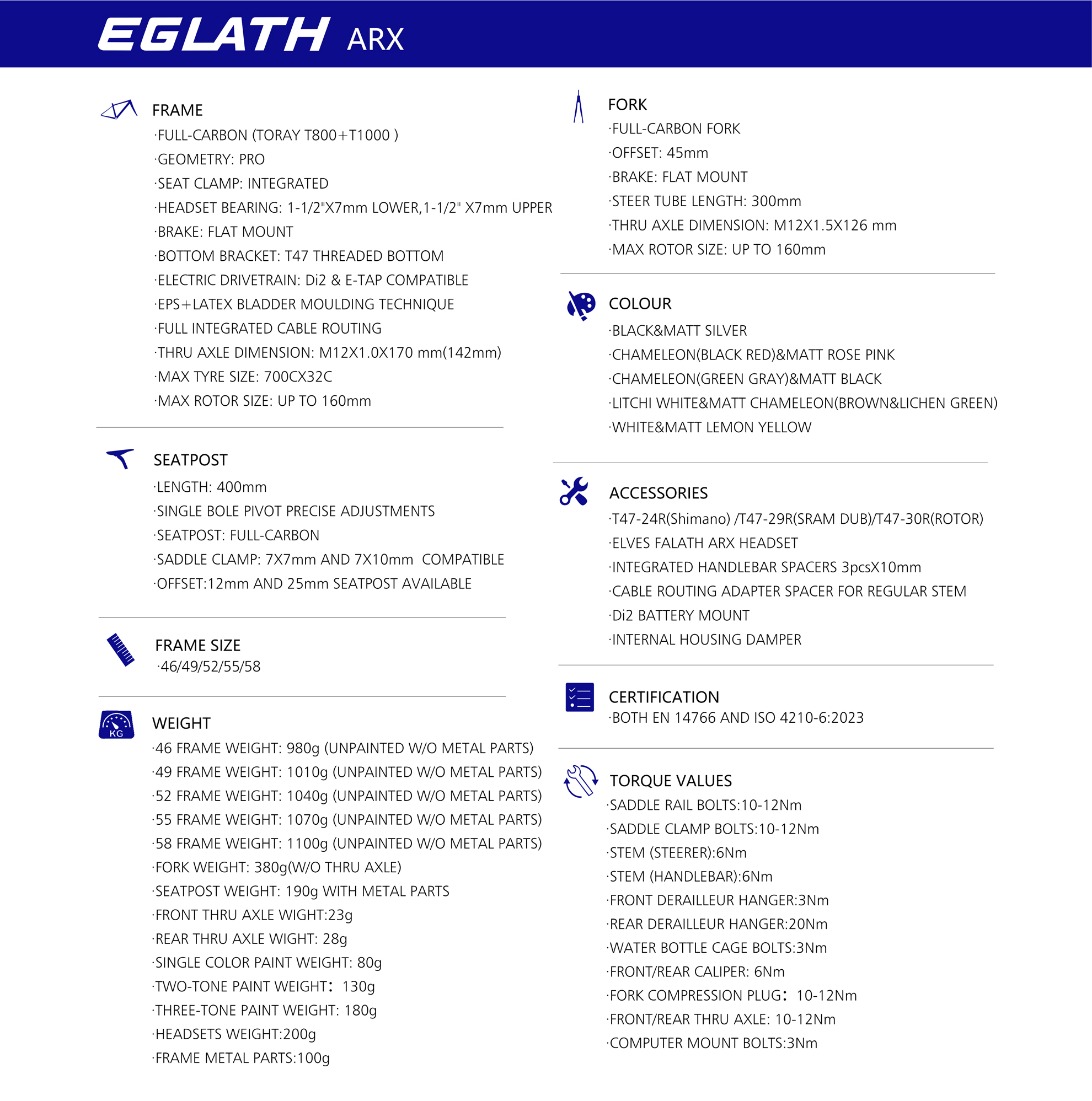

Detailed Specifications:


Certification:
Certified to EN 14766 and ISO 3210-6: 2023
Description:

Stable - At its core, the Elves Eglath ARX has been designed and manufactured using high-modulus Japanese Toray T800 and T1000 carbon fibre, balancing stiffness, compliance, and weight for maximum efficiency during long days in the saddle. The semi-aero tube profile reduces drag where it matters, while maintaining a more forgiving geometry optimised for endurance. The result is a bike that’s as fast on the open road as it is stable on rougher terrain.

Responsive - In true Elves fashion, the Eglath ARX combines race-bred pedigree that’s deeply rooted in our DNA with genuine all-road capability. Its endurance-inspired geometry positions the rider in a more upright position and features a shorter reach and taller stack for enhanced comfort and stability over long distances, while maintaining the precise and highly responsive handling and reactive feel expected from a high-performance chassis.

Versatile - Where the road ends, the Elves Eglath ARX keeps going. With clearance for up to 700 x 32C tyres, the frame absorbs vibration and irons out mixed terrain without compromising momentum. A robust T47 bottom bracket system enhances drivetrain rigidity for maximising power transfer, combining this with a UDH hanger and the performance of modern disc brakes, the Eglath ARX will deliver the versatility, confidence and control in all weather conditions.

Compatibility - Versatile by Design The Eglath ARX has been designed with complete versatility in mind, giving riders the freedom to build their perfect setup. It’s fully compatible with all modern 11 and 12 speed mechanical, and the latest 11, 12, and 13 speed electronic groupsets. Whether you prefer a 1x or 2x crankset, the Eglath ARX will adapt and comply with your chosen configuration.

Paired with our compact AeroEvo handlebars, the ARX’s fully internal cable routing keeps the aesthetic clean, aerodynamic, and efficient, while maintaining flawless functionality across both wired and wireless systems.

Safety -The Elves Eglath ARX meets EN14766 and ISO 4210-6: 2023 test standards, confirming its compliance with international benchmarks for safety, durability, and structural integrity. Together, these certifications reflect our commitment to delivering structurally optimised performance that riders can trust, wherever the road leads.

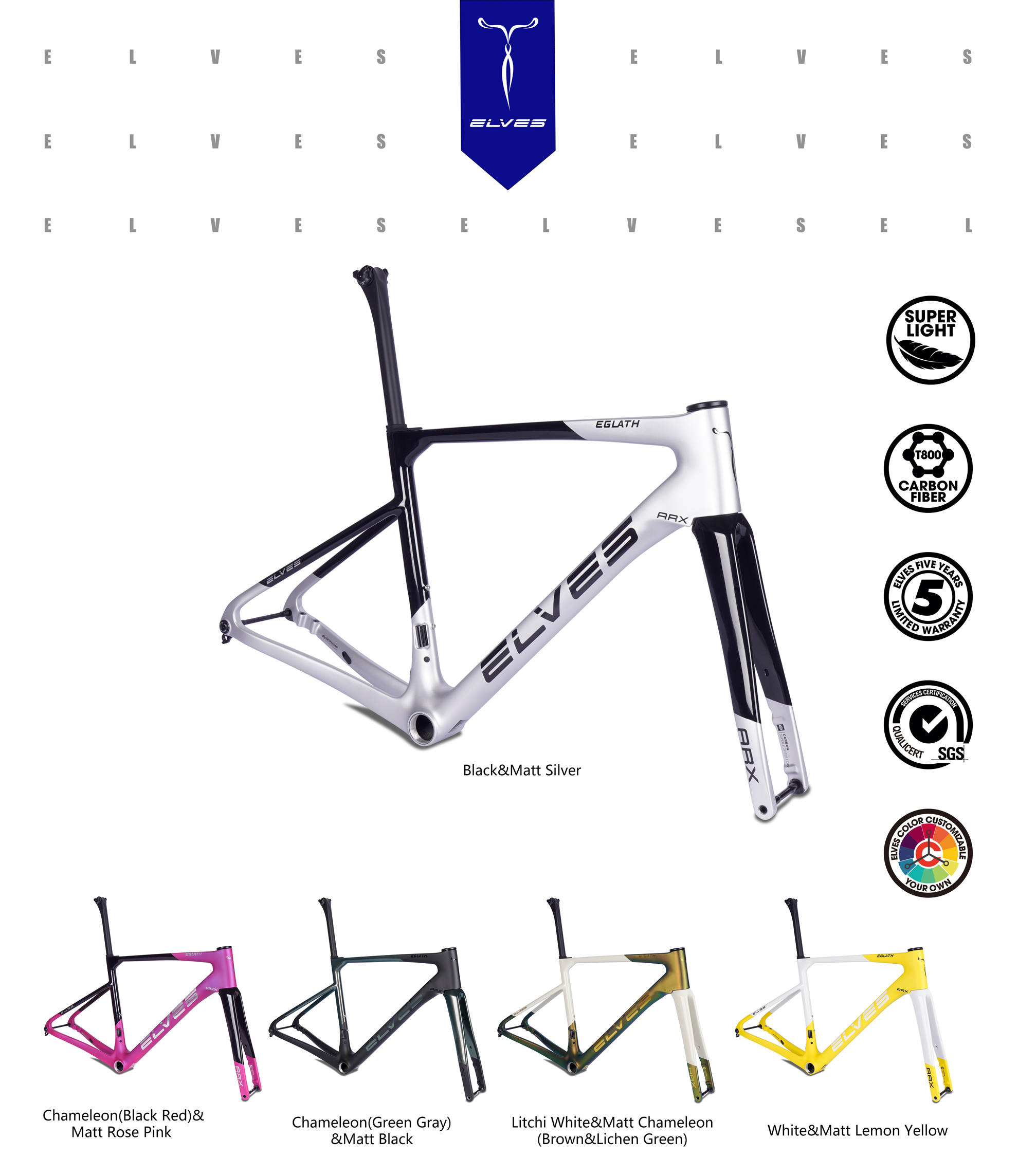

Individualism - Created in partnership with DSD, our Hong Kong design studio, and informed by the Pantone selections chosen by our riders globally, the Eglath ARX is available in eight stunning standard colours.

Our design philosophy is rooted in an understanding of what riders truly want, individuality, creativity, and accessibility. That’s why our custom paint programme is open to everyone, celebrating personal choice without the premium price tag.

For weight conscious customers, we also offer a matte black finish, shaving an average of 110 g from each frameset.

Warranty - The Elves design philosophy ensures our products are trusted and well respected within the industry in terms of safety and durability. However, to provide our riders with additional security and peace of mind, Elves bikes offer a 5-year global warranty on our frames and forks, and 2 years on our wheels, handlebars, and saddles.

Accessories - We are delighted to provide complementary accessories, including the rider’s choice of either a T47- 24R Shimano compatible or a T47- 29R SRAM DUB bottom bracket. Further, as standard, Elves Bikes frameset purchases include one of our headsets, three 10 mm integrated handlebar spacers, HPS03 headset spacers, adapters for traditional bars, and a cable routing stem adapter allowing the fitment of standard bars.

Sizing - To support Elves Bikes exponential global growth and expansion into Western markets, the Elves Eglath ARX is available in the following frame sizes, 46 cm, 49 cm, 52 cm, 55 cm, and 58 cm. Please refer to the detailed geometry provided to gain further insight.

Elves Bikes Promise - Together with our valued customers, Elves Bikes are globally transforming the price point for performance. We are committed to creating far greater rider equality through the production of quality products at affordable price points. We do not believe that riders should have to make the difficult choice or compromise between price and quality, at Elves Bikes, we deliver both.

We strive to create inclusive opportunities in everything we do, ensuring that our riders globally can unleash their true cycling potential.



COLOURS:

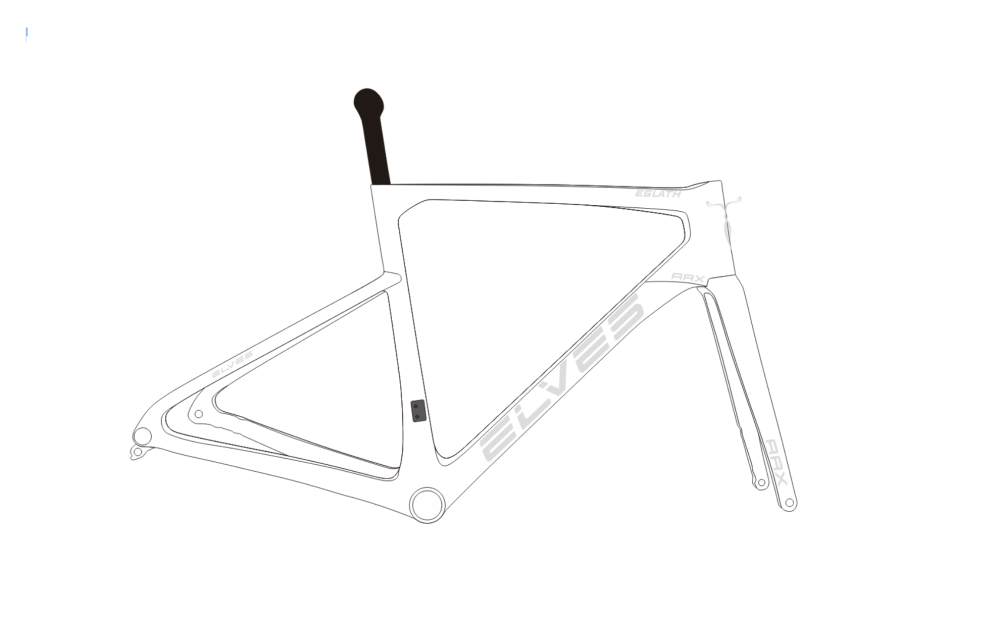

Elves Bikes offer more than 100 standard paints and more than 10 special chameleon paints, allowing you to design your own unique custom frame. All Elves frames are painted with the highest quality environmental paints and our finishes are stunning.

The process is so easy:

1. Click Custom Paint in the navigation menu above
2. Choose your design and your paint
4. Fill in the form
5. Click “Submit”
6. Your design mockup will be returned to you with in 24 hours.
