HOW TO GUIDES

Welcome to Our Build & Setup Guide

This section provides general guidance, reference material, and links to third-party videos that may assist with the assembly and setup of your bicycle.

Please note that the videos and external resources referenced here are not official Elves Bikes materials. They have been produced by independent third parties and are provided solely for illustrative and informational purposes. While they may offer useful insight into general bicycle assembly practices, Elves Bikes does not verify, endorse, or guarantee the accuracy, completeness, or suitability of any third-party content, nor can we confirm that the procedures shown are correct for your specific frame, components, or configuration.

Important Disclaimer

Elves bicycles are high-performance carbon framesets designed with advanced engineering, tight tolerances, and integrated systems. As such, they must only be assembled, serviced, and maintained by suitably qualified and experienced professional bicycle mechanics using the correct tools, torque values, and manufacturer-approved procedures.

By choosing to build or oversee the build of an Elves bicycle, the builder assumes full responsibility and liability for:

• Correct installation and torqueing of all components

• Compatibility of parts used in the build

• Adherence to all applicable safety standards and manufacturer specifications

• The structural integrity, safety, and roadworthiness of the completed bicycle

Elves Bikes accepts no responsibility or liability for damage, failure, injury, or loss arising from incorrect assembly, improper component selection, misuse, or reliance on third-party instructional content.

If you are in any doubt at any stage of the build process, we strongly recommend that you stop immediately and consult a qualified professional mechanic or an authorised Elves Bikes distributor or assembly partner.

Your safety is paramount, and correct professional assembly is essential to ensure optimal performance, longevity, and rider protection.

Bikes Builds

1. Building a Falath Evo+  Link

Building the Falath Evo+ Aero Bike. Good simple explaination. This video will give you an indication of how to build all Elves road and gravel bikes

2. Building the Mori AeroX Link

Another cracking video from Elves Bikes South Africa building the Elves Mori AeroX Gravel bike

3. Building the Vanyar Pro Link

Very professional video from Sport Junction, building the Vanyar Pro Hill Climber

4. Building the Amanyar 1.0 Link

Very professional video from Sport Junction, building the Amanyar 1.0 TT / Triathlon Bike

Build Tips

•
  2. Stop your seatpost slipping - Top Tip Link

  This is important to waych to ensure that your seat post does not slip.

  3. Adjusting your saddle angle - Top Tip Link

  A few customer cannot figure out how to adjust the angle of their saddle on Mori's, Vanyar, Falath Pro and Elglath. This video will help.

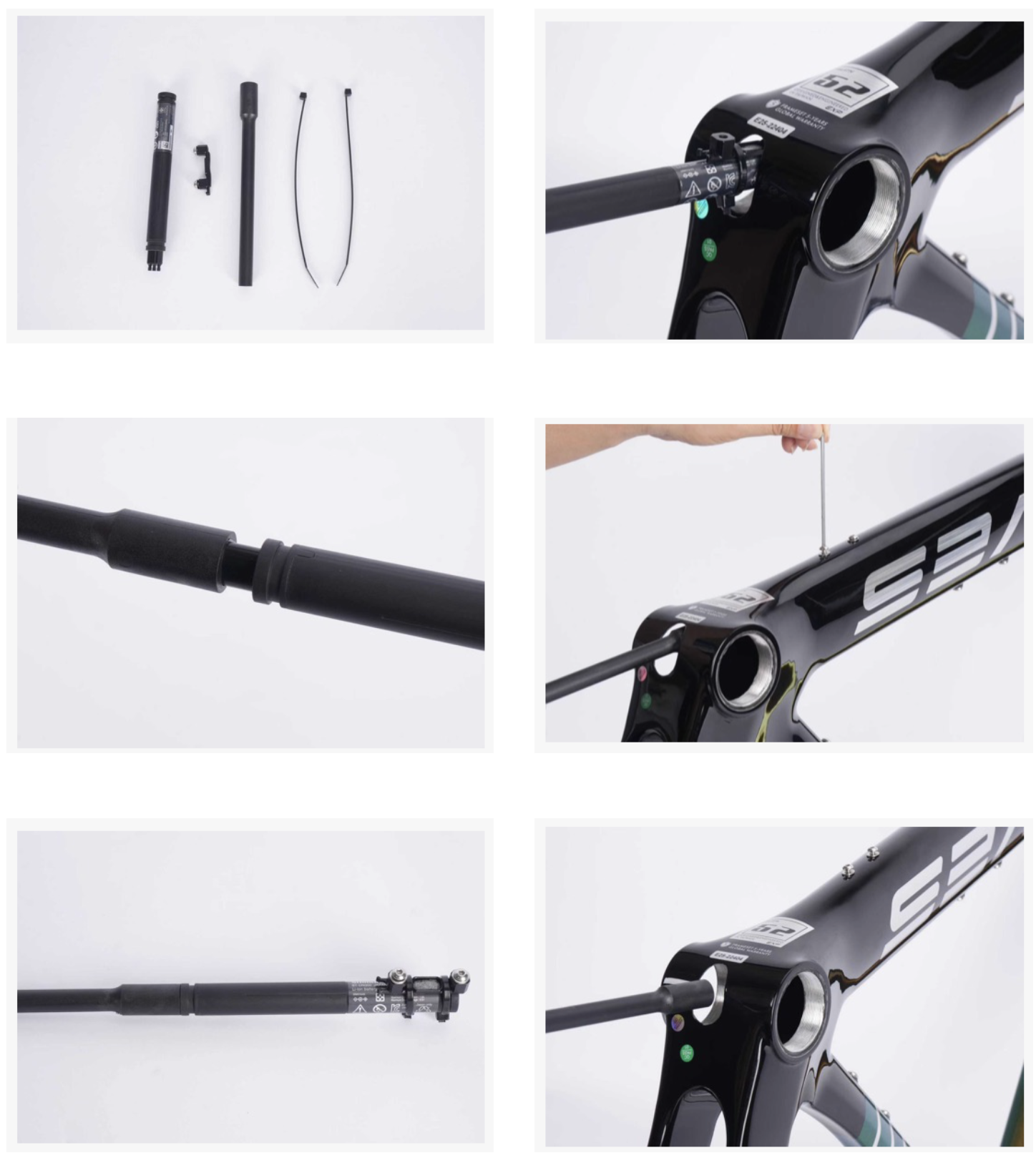

  4. Fitting your Di2 battery in the Falath EXP

  Please follow this simple guide to install the Shimano Di2 battery on your Elves Falath EXP. Please connect the Di2 wires before installing the battery as it will save a lot of time.




  5. Flat Mount bolt Sizes
  The following guid gives you the rear calliper bolts size for each frame.

  Falath Evo, Falath Evo+, Falath Pro, Vanyar Pro, Avari Pro,
  Eglath Pro = 20mm flat mountFalath EXP, Eglath ARX = 25mm flat mount
  Mori AeroX, Amanyar 1.0 = 30mm flat mount

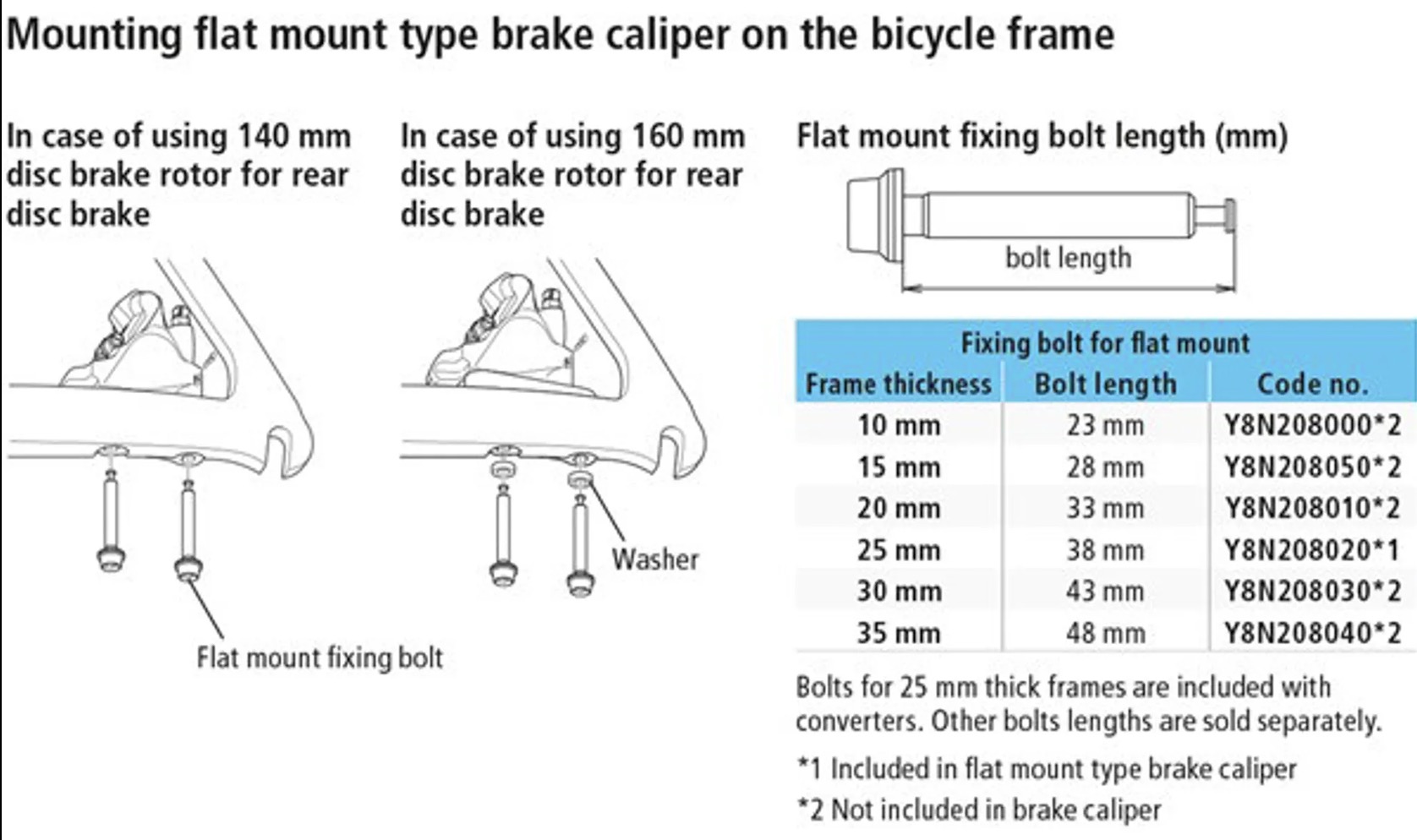

This is the guide for Shimano

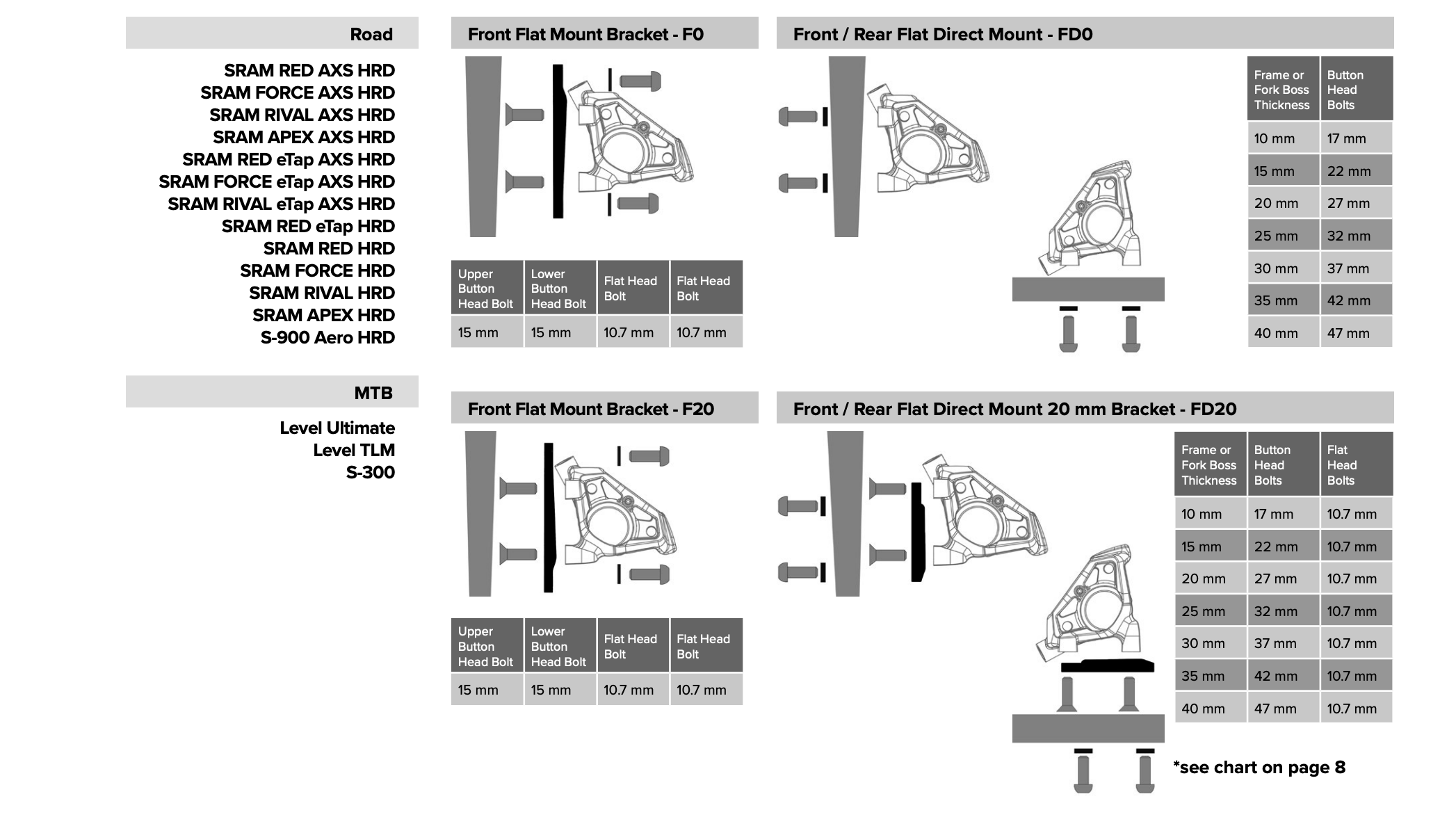

This is the guide for SRAM
